Kawasaki Teryx 4" Portal Gear Lift

Fits:
Kawasaki Teryx 4 : 2012+
Kawasaki Teryx : 2014+

NOTE: NOT compatible with Super ATV Atlas Pro Boxed A-Arms

Wheel Requirements:

14” or larger wheel REQUIRED

14” wheels CANNOT exceed 4-1/2” backspacing 

15” and larger wheels CANNOT exceed 5” backspacing

NOT compatible with dual beadlock wheels

Wheels NEED to have a center hole of at least 3.25" (82.55mm) or REQUIRE a 1” wheel spacer

Factory Teryx wheels are hub centric. When using our Portal Gear Lifts you MUST run aftermarket lug centric wheels. Almost all aftermarket wheels are lug centric

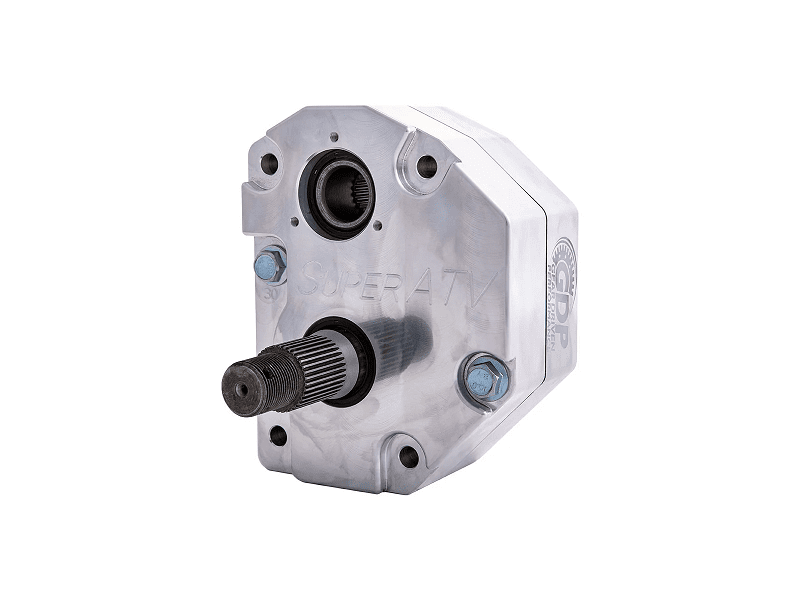

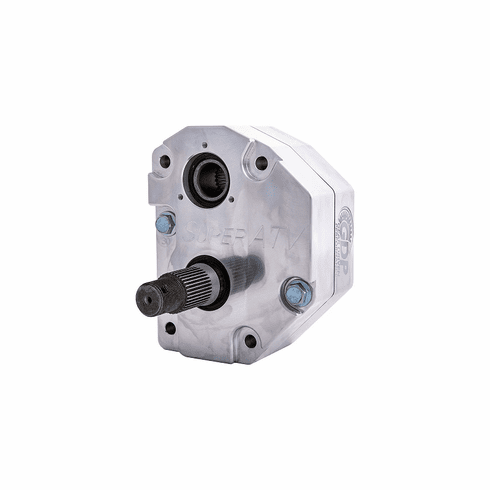

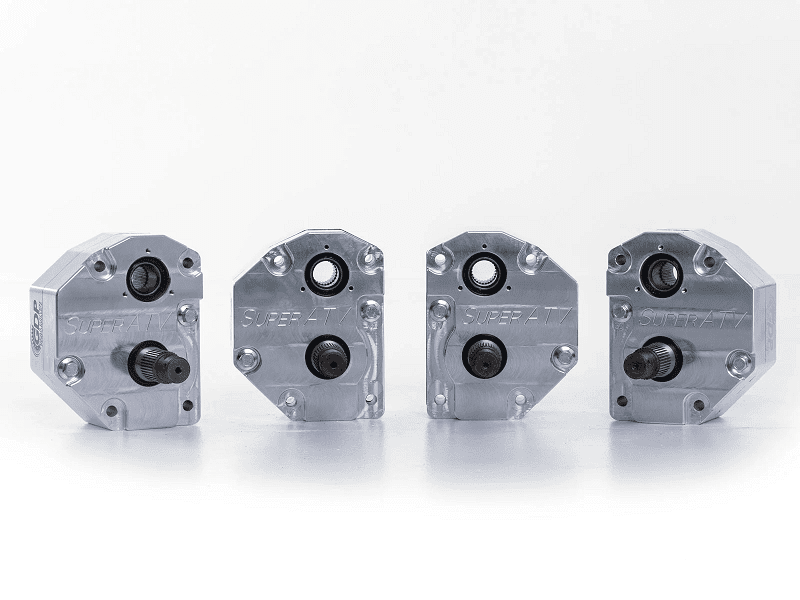

Super ATV’s GDP 4” Portal Gear Lift for the Kawasaki Teryx is built for all terrains and tasks. Choose between 15% or 30% gear reductions and cast or billet aluminum housings to match your riding style.

The 30% gear reduction offers extra torque for mud and rocks, while the 15% is perfect for trail riding and work applications—providing clearance, towing power, and speed.

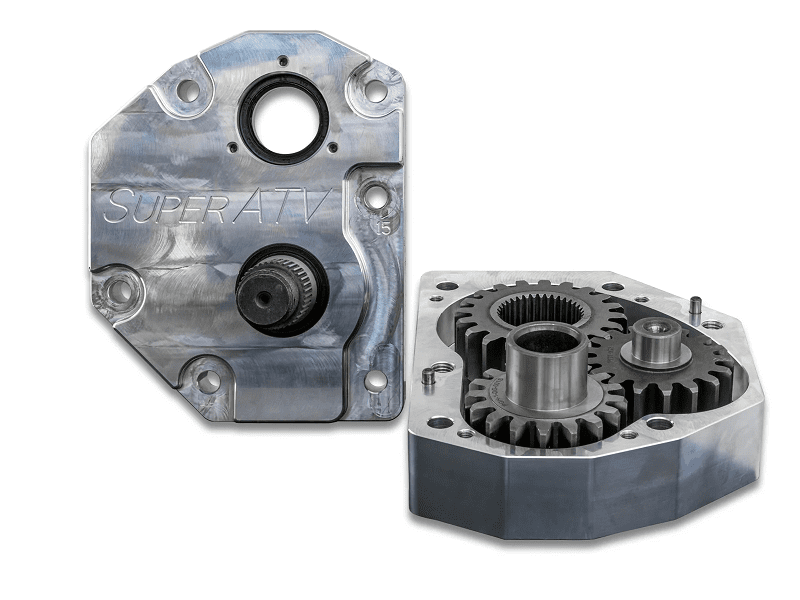

These portals feature precision-ground 9310 billet steel gears for strength and quiet performance, reinforced housings designed for durability and optimized oil flow, and advanced seals to prevent leaks. Backed by expert customer support, GDP portals are engineered for strength, versatility, and long-term reliability.

Features:

Available with billet or cast aluminum housing

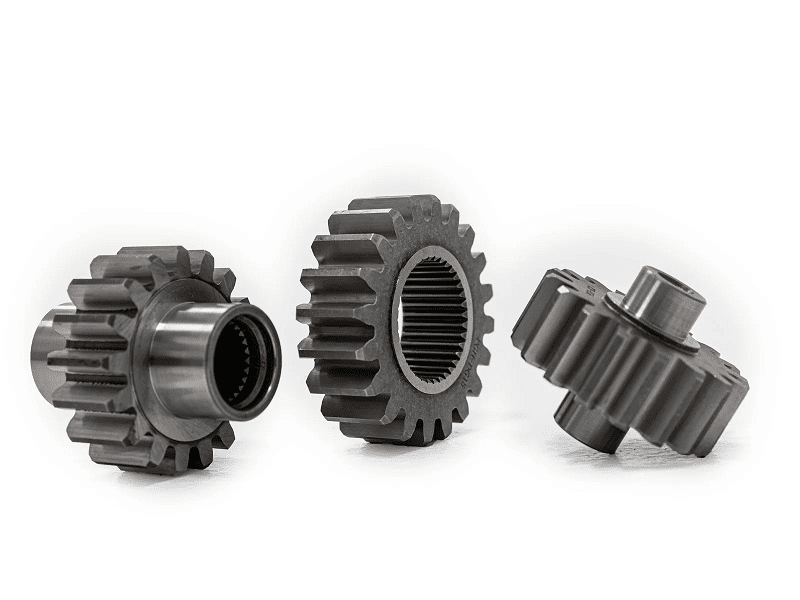

Cool, quiet, precision ground gears made from 9310 alloy billet steel

Increases width by 4 in. per side (8 in. total)

1.5 in. diameter 4340 hardened steel drive shaft

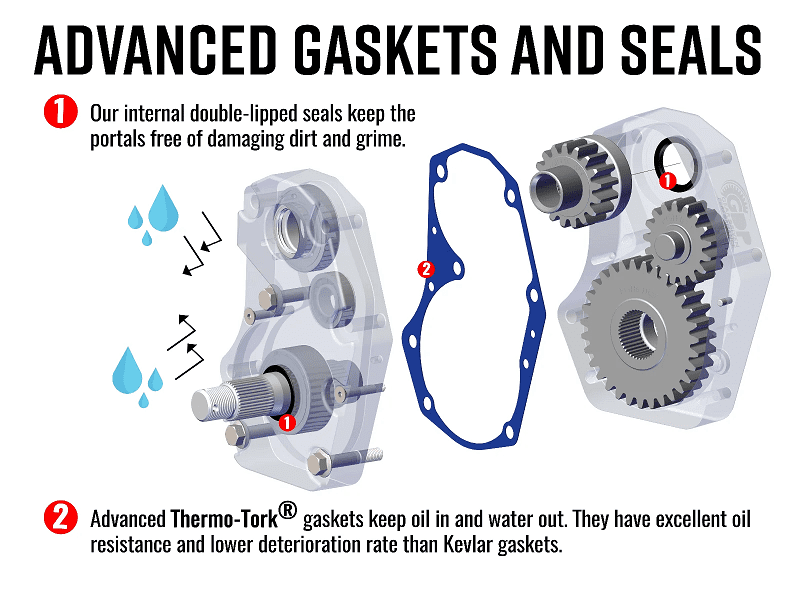

No leak bearings and seals

Universal hub fits all major bolt patterns

Comes complete with all hardware, backing plates, brakes lines and instructions

If you are curious about how to install this product, you can view the Install Instructions here.

This item usually ships in 2-3 business days.
