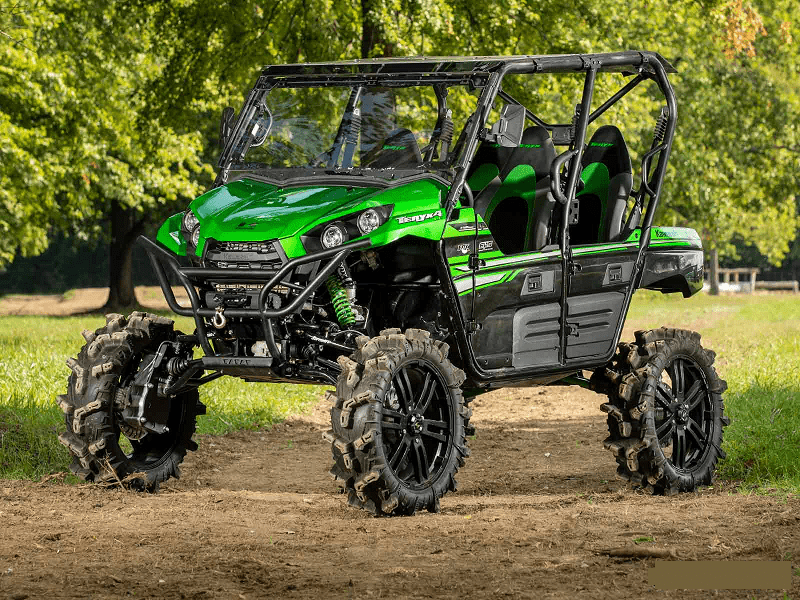

Kawasaki Teryx 8" Portal Gear Lift

Fits:
Kawasaki Teryx : 2014+
Kawasaki Teryx 4 : 2012+

Wheel Requirements:

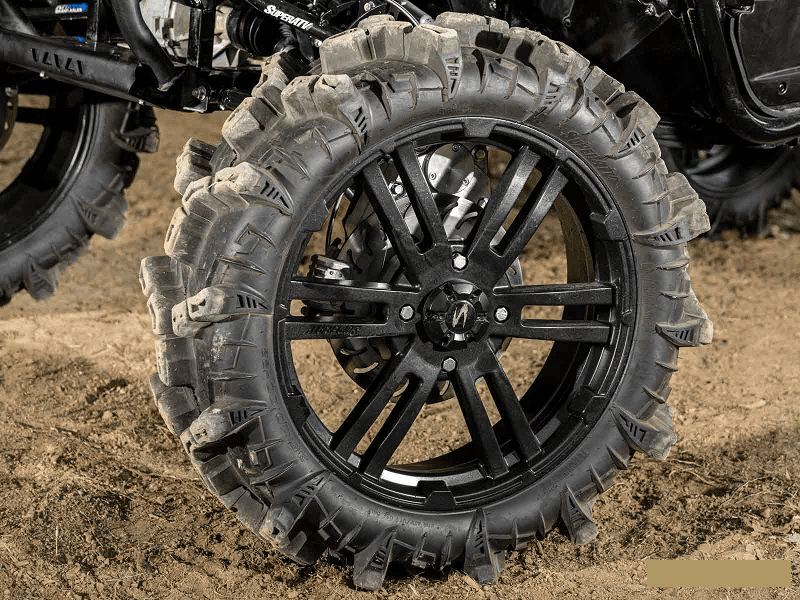

22" or larger wheel REQUIRED

Wheels CANNOT exceed 5" backspacing

Wheels NEED to have a center hole of at least 3.25" (82.55mm) or REQUIRE a 1” wheel spacer

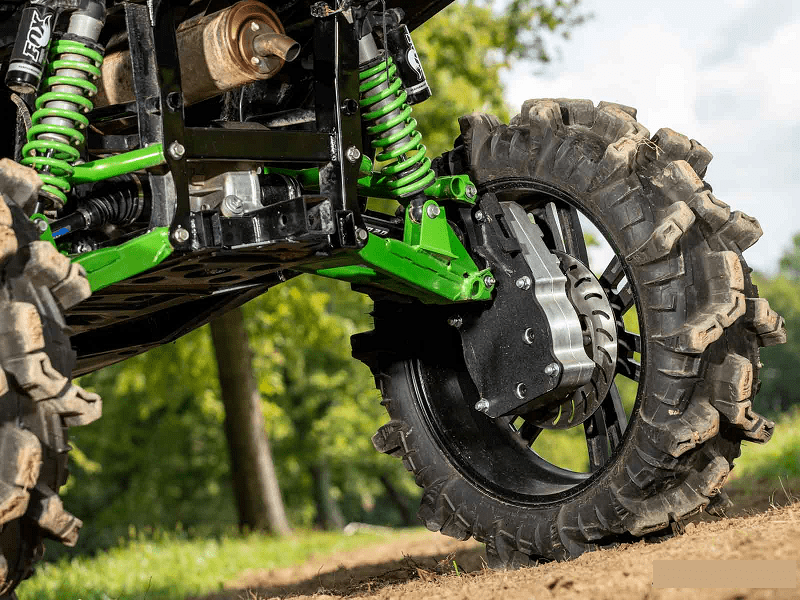

Super ATV’s 8" Portal Gear Lift for the Kawasaki Teryx delivers extreme performance with a massive lift and a 45% or 60% gear reduction - perfect for conquering deep mud and tough terrain.

Designed with GDP technology, these portals offer unmatched strength, drivetrain protection, and reliability. Choose between cast or billet aluminum housings with reinforced steel backing plates, advanced seals, and optimized oil flow.

For best results, pair with a frame stiffener to handle the added stress. Backed by expert support, these portals are built to dominate any ride.

Kit Includes:

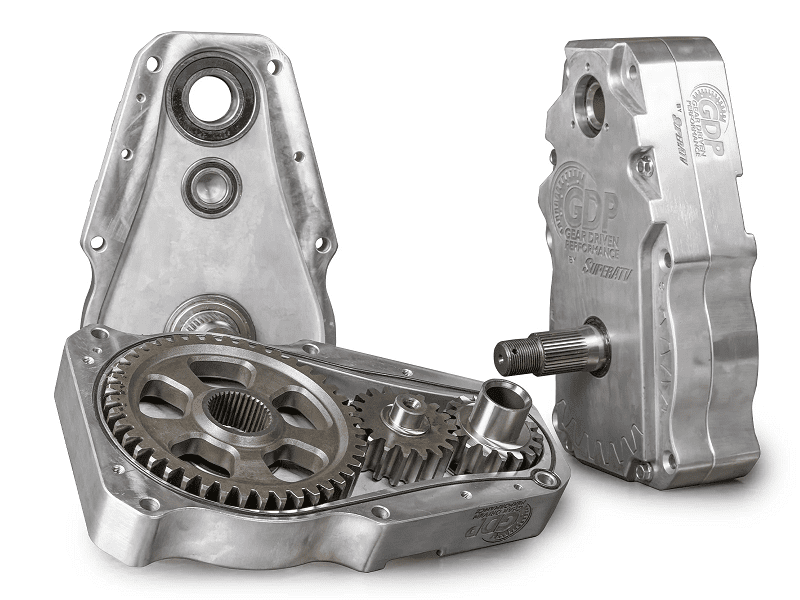

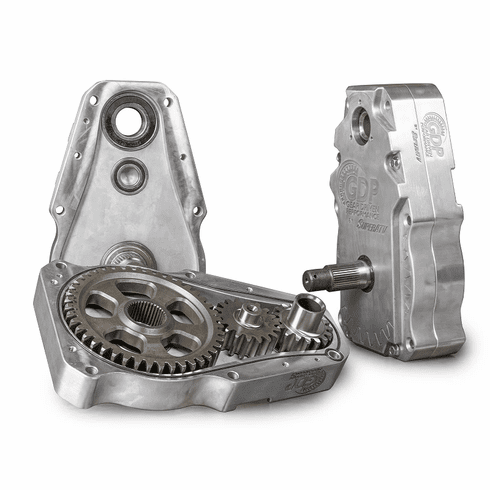

(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings

(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs

(4) Specialized steel alloy backing plates

(4) Steel caliper mounting plates

(8) Caliper mounting plate shims

Left and right parking brake brackets

Left and right brake cable brackets

Steering stop kit

Extended brake lines

All required hardware, including recessed castle nut socket

Frame stiffener (must select at checkout)

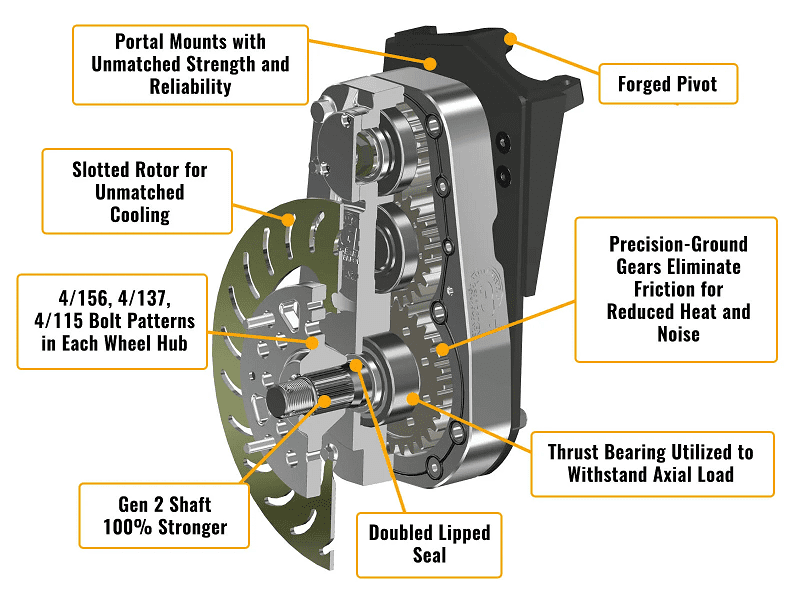

Features:

Available with billet or cast aluminum housing

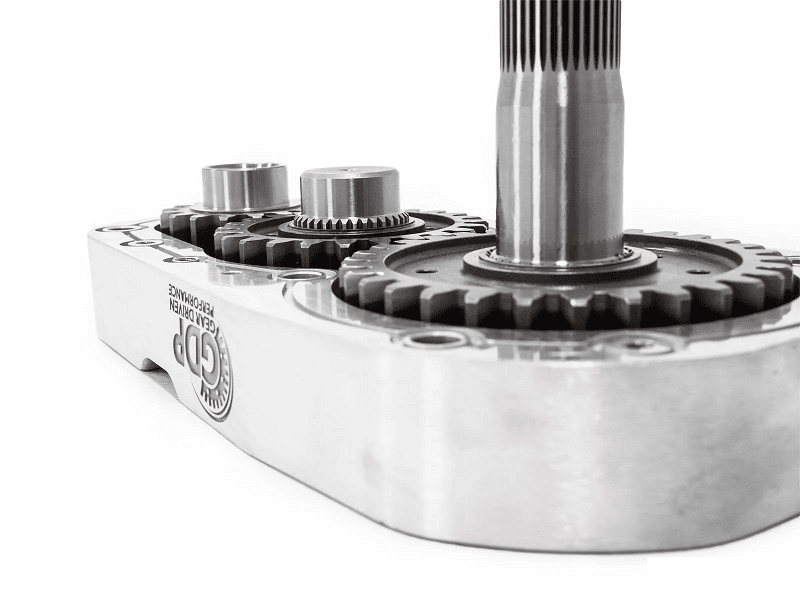

Cool, quiet, precision ground gears made from 9310 alloy billet steel

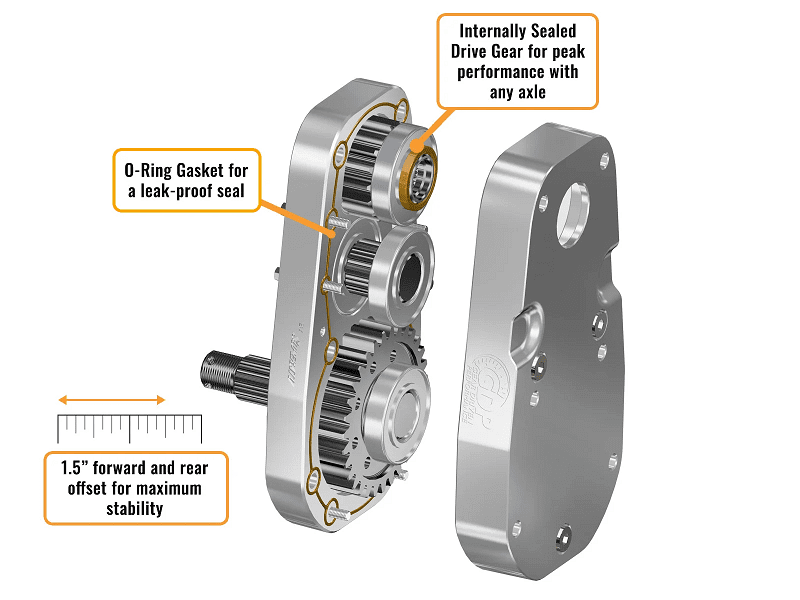

1.5 in. forward and rear offset

Increases width by 4 in. per side (8 in. total)

1.5 in. diameter 4340 hardened steel driveshaft

Housings use advanced gaskets and rubber O-rings that don’t let anything through

Universal hub fits all major bolt patterns 

Gear reduction reduces stress on your drivetrain

If you are curious about how to install this product, you can view the Install Instructions here.

If you are curious about how to install this product, you can view the Install Instructions here.

This item usually ships in 2-3 business days.
