Super ATV 2015+ Kawasaki Mule Pro 4" Portal Gear Lift
Fitment:
- Kawasaki Mule Pro DX : 2016+
- Kawasaki Mule Pro DXT : 2016+
- Kawasaki Mule Pro FX : 2016-2023
- Kawasaki Mule Pro FXR : 2018-2023
- Kawasaki Mule Pro FXT : 2015-2023
- Kawasaki Mule Pro FXT Ranch Edition : 2016-2023
Wheel Requirements:
- 14” or larger wheel required
- Cannot exceed 5” backspacing
- NOT compatible with dual beadlock wheels
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer

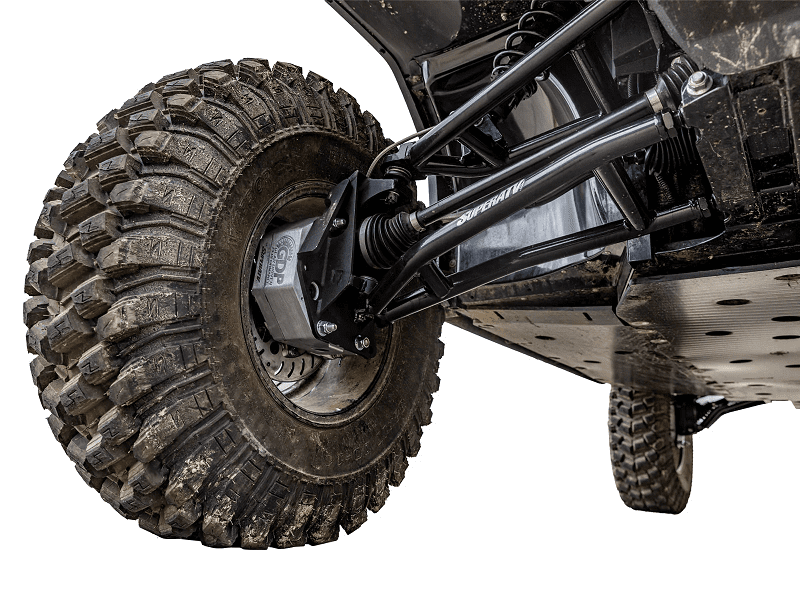

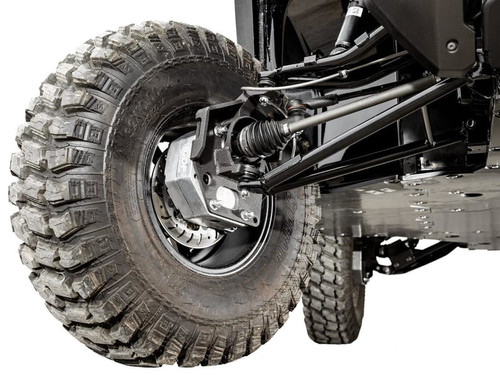

Super ATV’s Gen 3 GDP 4” Portal Gear Lift for the Kawasaki Mule Pro gives you more ground clearance, more torque, and the flexibility to match your riding style.
Choose a 15% gear reduction for farming and trail riding, or go with 30% for serious mud and rock crawling. The extra clearance lets you run bigger tires and get over rocks, ruts, brush, and other obstacles with ease.

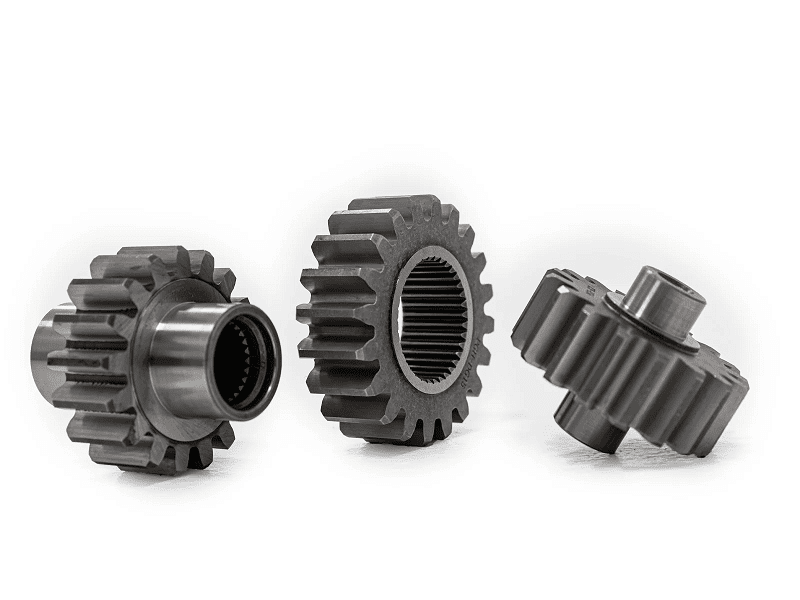

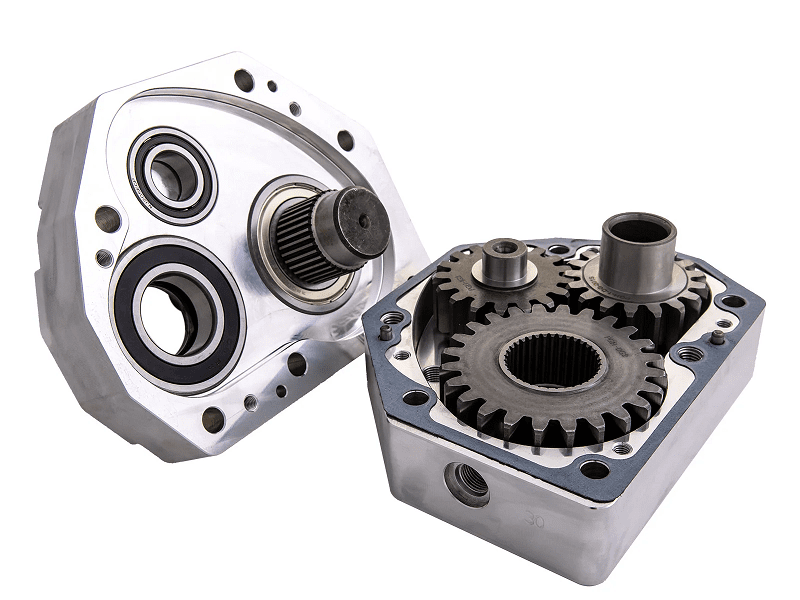

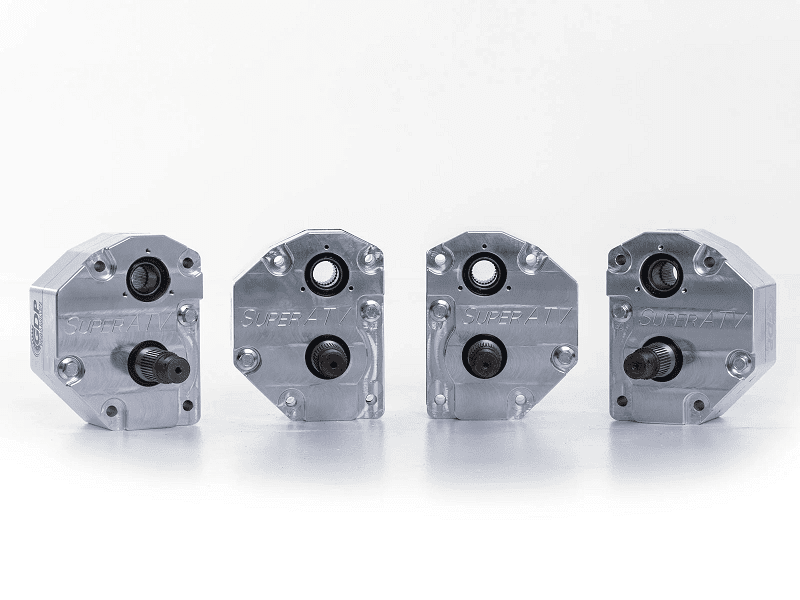

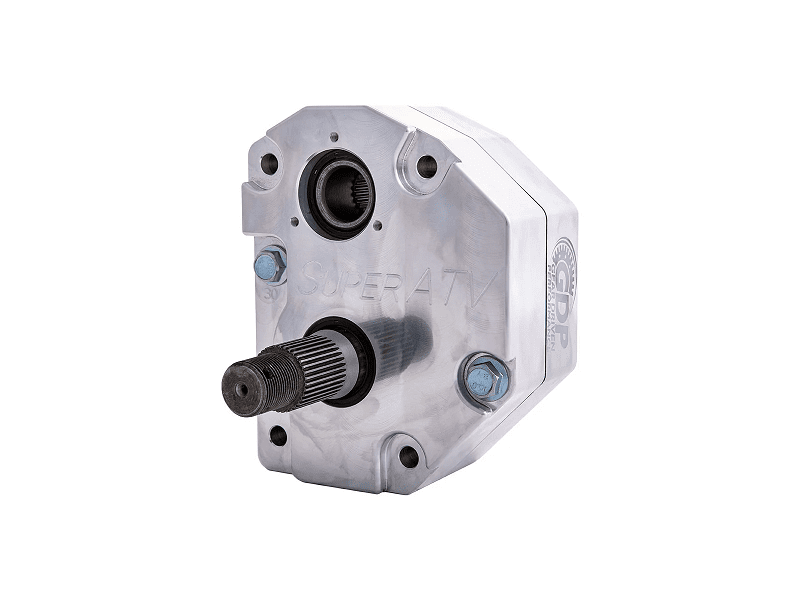

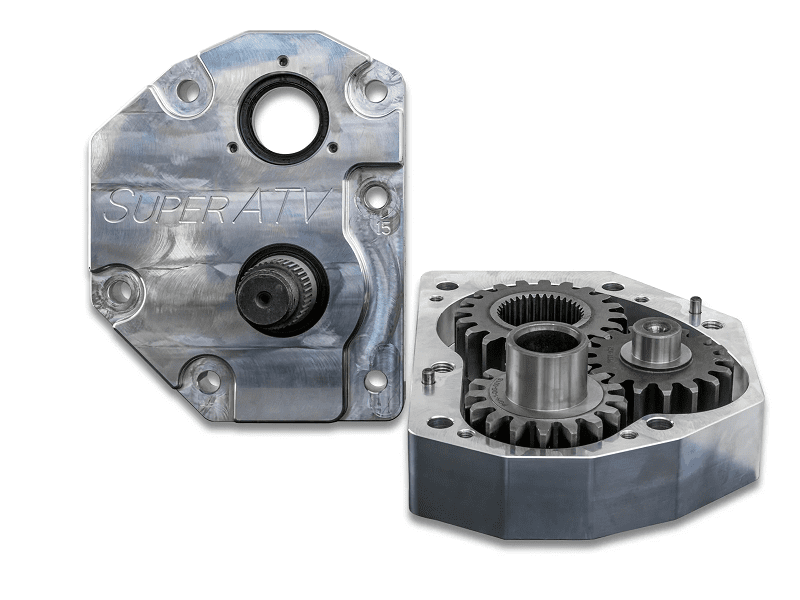

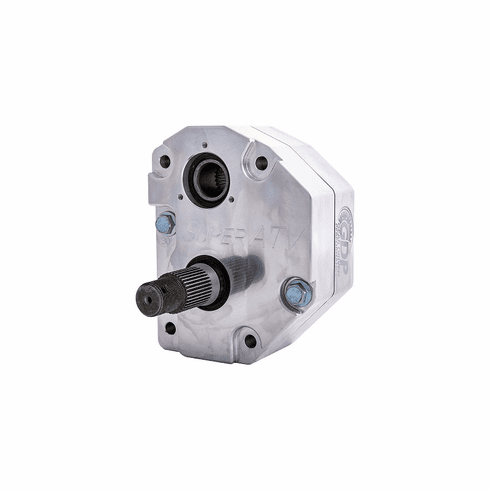

Built for strength and reliability, these portals use precision-ground 9310 billet steel gears for smooth, quiet operation and durable performance. You can choose between cast or USA-made 6061 billet aluminum housings, both reinforced for strength and optimized for oil flow.
Advanced gaskets, a sealed input gear, and a double-lipped output seal provide 100% sealing coverage to help keep your portals protected and leak-free.
Features:
- Available with billet or cast aluminum housing
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- No leak bearings and seals
- Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115, and 4/110
- Comes complete with all hardware, backing plates, brake lines, and instructions
