Kawasaki Teryx S 6" Portal Gear Lift

Fits:
Kawasaki Teryx S : 2021+
Kawasaki Teryx 4S : 2021+

Wheel Requirements:

18” or larger wheel REQUIRED

18” wheels CANNOT exceed 4-1/2” backspacing 

20” and larger wheels CANNOT exceed 5” backspacing

Wheels NEED to have a center hole of at least 3.25" (82.55 mm) or will REQUIRE a 1” wheel spacer

Super ATV’s GDP 6” Portal Gear Lift for the Kawasaki Teryx S delivers serious performance upgrades - boosting ground clearance, fitting larger tires, and offering a 30% or 45% gear reduction.

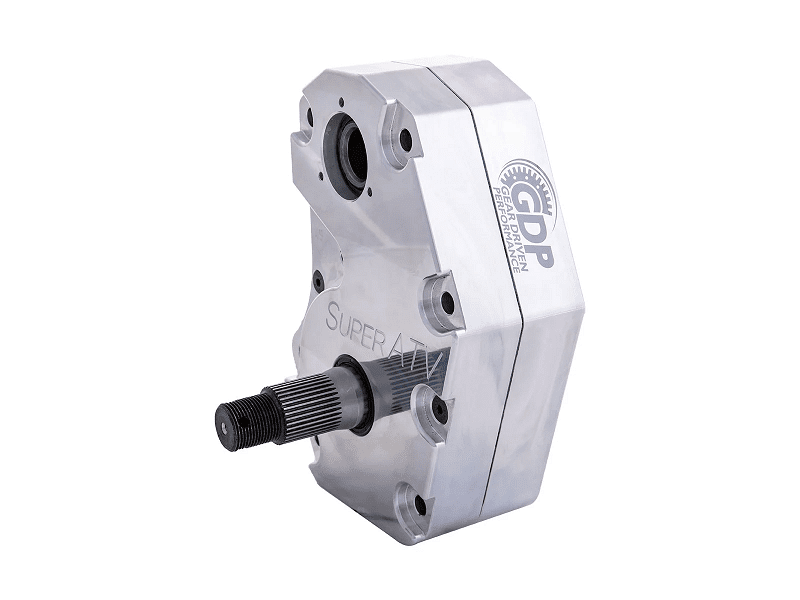

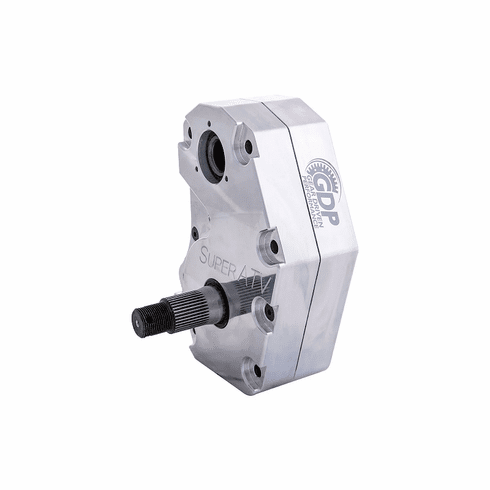

You can choose between cast or USA-made billet aluminum housings, both engineered for maximum strength. With the gear reduction located in the hub, it protects your drivetrain while delivering more torque for mud and off-road use.

GDP portals feature 9310 alloy steel gears, ultra-strong housings and backing plates, premium seals and bearings, and universal hubs with slotted rotors for precise braking. Backed by expert customer support, they’re designed to outlast your machine and dominate any terrain.

Kit Includes:

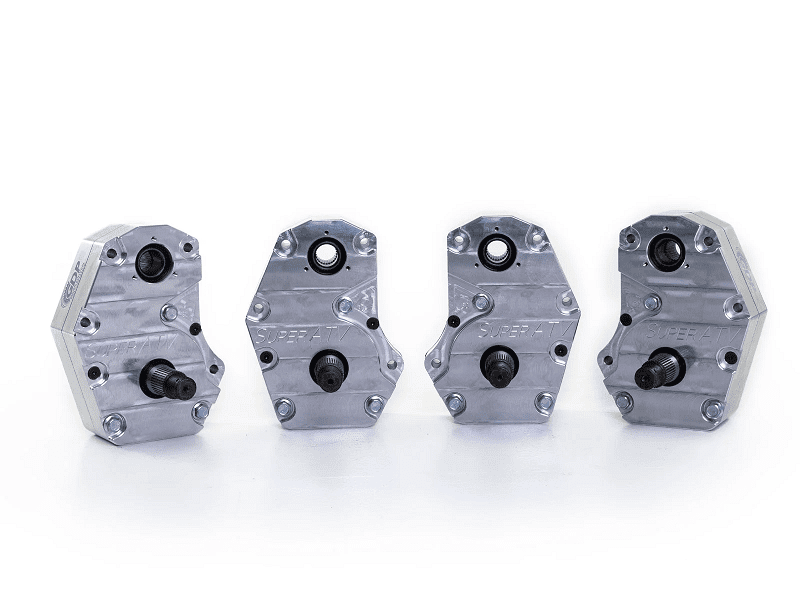

(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings

(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs

(4) Specialized steel alloy backing plates

(4) Steel caliper mounting plates with spacers

(2) Steel steering arms

Extended brake lines with parking brake and brake cable brackets

All required hardware, including recessed castle nut socket

Features:

Available with billet or cast aluminum housing

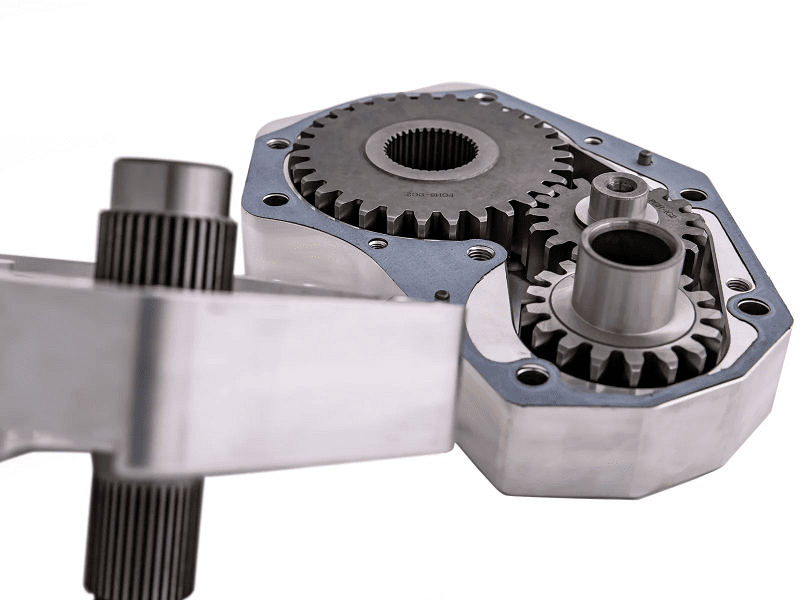

Cool, quiet, precision-ground gears made from 9310 alloy billet steel

Increases width by 4 in. per side (8 in. total)

1.5 in. diameter 4340 hardened steel driveshaft

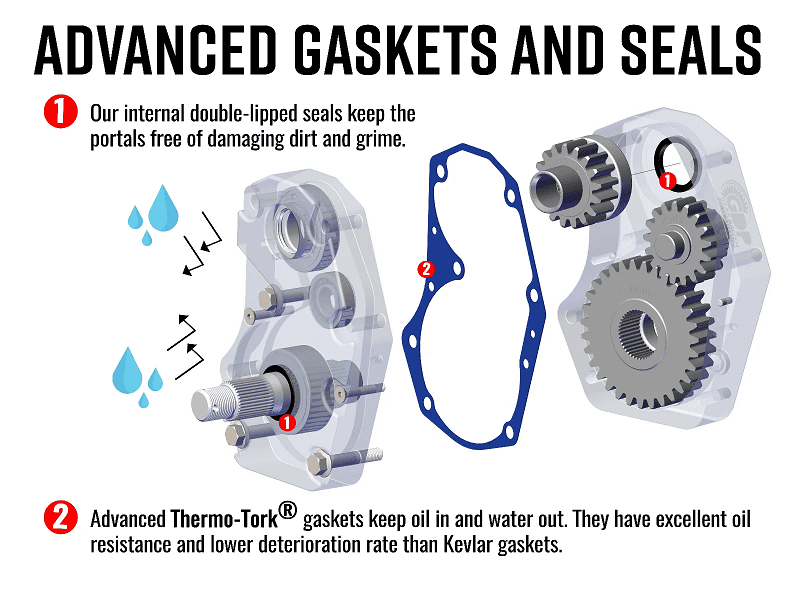

Housings use advanced gaskets that don’t let anything through

Universal hub fits all major bolt patterns

Gear reduction reduces stress on your drivetrain

Weighs 224 lb. total, which is 25+ lb. lighter than the competition

If you are curious about how to install this product, you can view the Install Instructions here.
