Kawasaki Teryx 6" Portal Gear Lift

Fits:
Kawasaki Teryx 4 : 2012+
Kawasaki Teryx : 2014+

NOTE: NOT compatible with Super ATV Atlas Pro Boxed A-Arms

Wheel Requirements:

18” or larger wheel REQUIRED

18” wheels CANNOT exceed 4-1/2” backspacing 

20” and larger wheels CANNOT exceed 5” backspacing

Wheels NEED to have a center hole of at least 3.25" (82.55mm) or REQUIRE a 1” wheel spacer

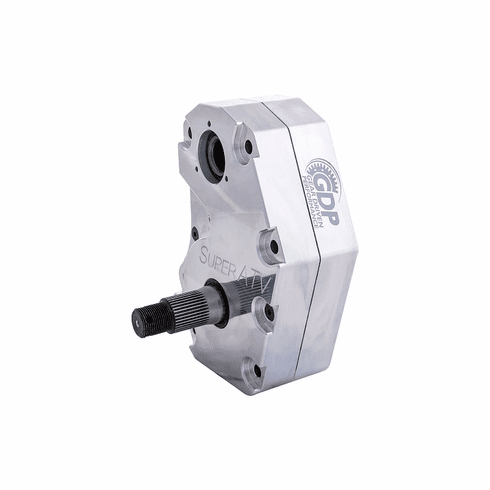

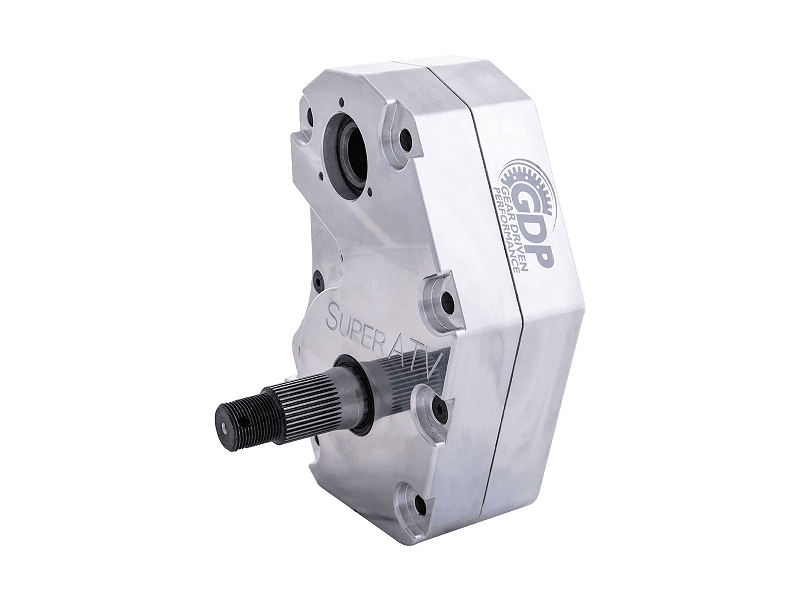

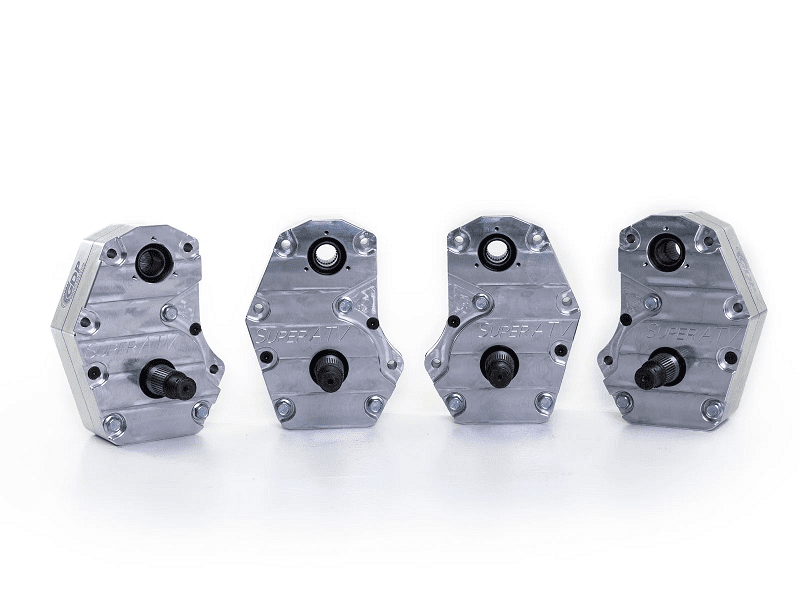

Super ATV’s GDP 6” Portal Gear Lift for the Kawasaki Teryx delivers both ground clearance and serious torque in one rugged package.

With gear reductions of 30% or 45% built into the hub, these portals reduce drivetrain stress and preserve suspension geometry. Choose between cast or billet aluminum housings to suit your build.

A 45% gear reduction is ideal for deep mud and extreme rock crawling, giving you the power to turn huge tires with ease. The 30% reduction offers all-around performance for trails, hills, and road use.

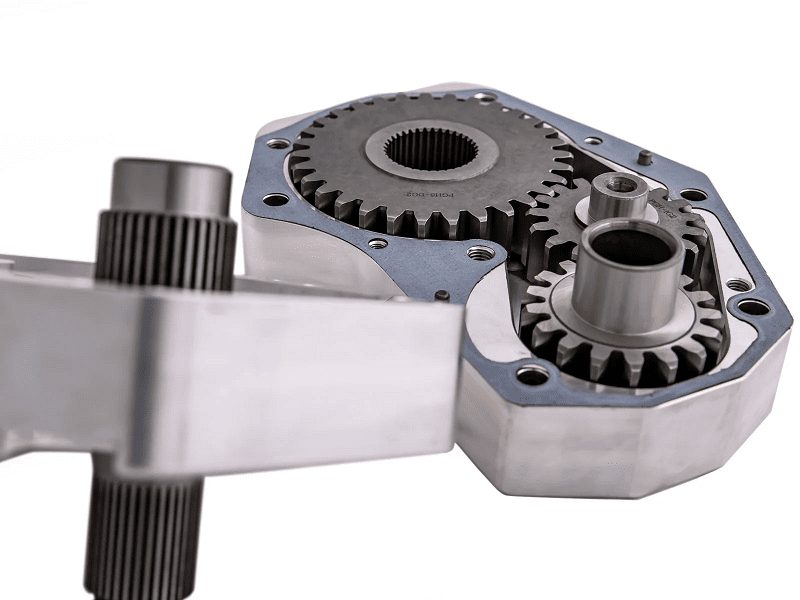

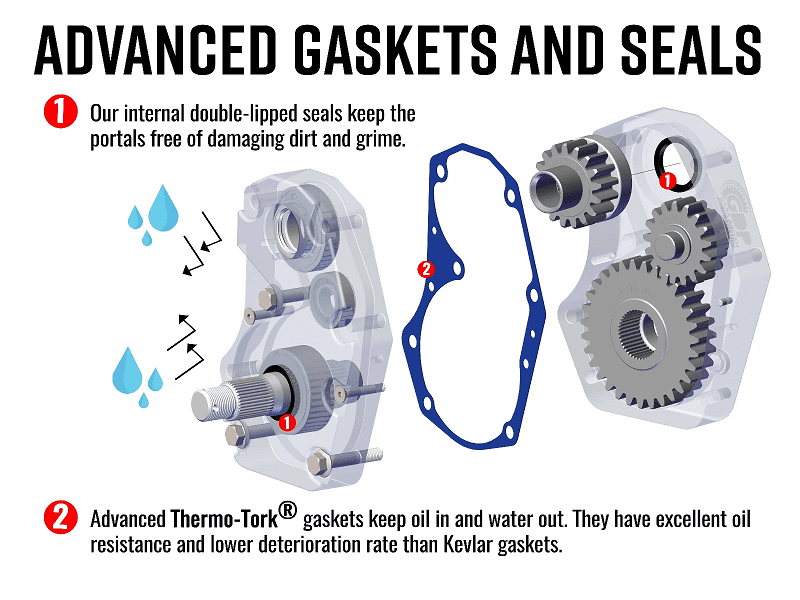

Built with precision-ground 9310 billet steel gears and reinforced housings, these portals are sealed tight with advanced gaskets and double-lipped seals to eliminate leaks.

Features:

Available with billet or cast aluminum housing

9310 alloy billet steel precision ground gears are cool and quiet

Increases width by 4 in. per side (8 in. total)

1.5 in. diameter 4340 hardened steel drive shaft

No leak bearings and seals

Universal hub fits all major bolt patterns

Comes complete with all hardware, backing plates, brakes lines and instructions

If you are curious about how to install this product, you can view the Install Instructions here.

This item usually ships in 2-3 business days.
