Super ATV 2016-2021 Polaris RZR XP Turbo 8" Portal Gear Lift
Fitment:
- Polaris RZR XP Turbo : 2016-2021
- Polaris RZR XP 4 Turbo : 2016-2021
Wheel Requirements:
- 22" or larger wheel required
- Wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
Super ATV’s GDP 8” Portal Gear Lift for the Polaris RZR XP Turbo gives you massive lift and powerful gear reduction in one package.
You can choose from 45%, 60%, or an extreme 70% gear reduction, with the 70% option available with dual idler gears for maximum strength and torque. These portals let you run huge tires while delivering the torque needed to spin them with ease - making them ideal for deep mud and aggressive riding. The dual idler setup uses two precision-matched 9310 steel alloy gears to spread the load and provide stronger, more reliable power transfer.
Because the gear reduction happens in the hub, it reduces stress on your drivetrain components like axles, differentials, and the transmission, helping them last longer. The system features reinforced cast or 6061 billet aluminum housings, heavy-duty 5/16” alloy steel backing plates, advanced gaskets and seals to prevent leaks, and premium bearings for durability.
A frame stiffener is required to support the added lift and large tires, ensuring your UTV’s frame can handle the extra strain. Overall, these 8” GDP portals are built for riders who want maximum clearance, torque, and mud-dominating performance.
8” Portal Gear Lift Includes:

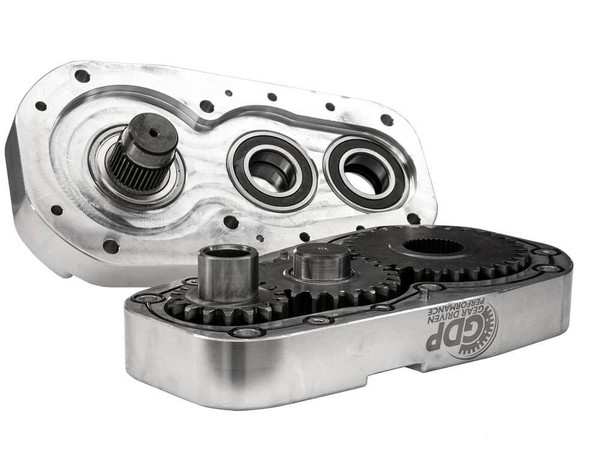

- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Rear caliper adapter plates
- (2) Front caliper adapter plates (dual idler configuration only)
- (2) Rear hub adapters
- (2) Steel steering arms
- (4) Shims (for specific year models only)
- Extended brake lines
- Frame stiffener (must select at checkout)
- All required hardware, including recessed castle nut socket
Features:
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. forward and rear offset
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
