Super ATV 2019+ Honda Talon 1000R 8" Portal Gear Lift
Fitment:
- Honda Talon 1000R : 2019+
- Honda Talon 1000R-4: 2023+
Wheel Requirements:
- 22" or larger wheel required
- Wheels cannot exceed 5" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
Super ATV’s 8" GDP Portal Gear Lift for the 68" Honda Talon is built for extreme riding, giving you massive ground clearance along with a choice of 45% or 60% gear reduction.
The added lift lets you run much larger tires, while the gear reduction delivers the extra torque needed to turn them. The 45% reduction is ideal for aggressive mud riding, while the 60% option provides even more low-end power for extreme terrain and oversized tires. Because the reduction happens at the hubs instead of the transmission, it also helps reduce stress on your axles, differential, prop shafts, and transmission.

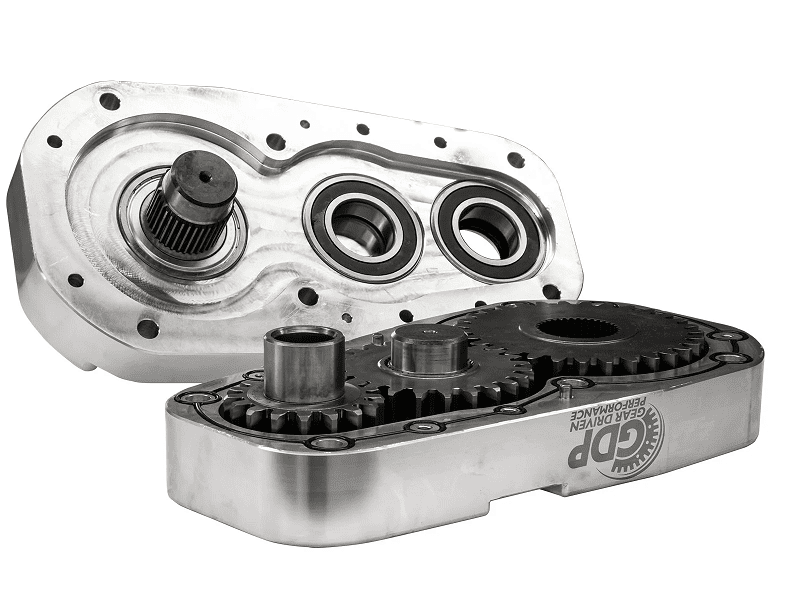

Built for serious abuse, GDP portals use precision-ground 9310 alloy steel gears, reinforced cast or billet aluminum housings, 5/16" heavy-duty backing plates, advanced gaskets and seals, and high-strength bearings designed to handle extreme torque and impacts. Universal hubs and slotted stainless-steel rotors provide strong braking performance and support several popular UTV bolt patterns.
A frame stiffener is required with the 8" portals to help reinforce your Talon’s frame and handle the increased demands of extreme portal-equipped riding.
Kit Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, Thermo-Tork® gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (2) Heavy-duty lower ball joints preinstalled
- (2) Rear bearing carriers
- (4) Steel caliper mounting plates
- (8) Caliper mounting plate spacers
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Frame stiffener (must select at checkout)
Features:
- Available with billet or cast aluminum housing
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- 1.5 in. forward and rear offset
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel driveshaft
- Housings use Thermo-Tork® gaskets and rubber O-rings that don’t let anything through
- Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115, and 4/110
- Gear reduction reduces stress on your drivetrain
