Honda Pioneer 1000 8" Portal Gear Lift

Fits:
Honda Pioneer 1000 : 2016+
Honda Pioneer 1000 Deluxe : 2016+
Honda Pioneer 1000 Limited Edition : 2022+
Honda Pioneer 1000-5 : 2016+
Honda Pioneer 1000-5 Deluxe : 2016+
Honda Pioneer 1000-5 Limited Edition : 2022+
Honda Pioneer 1000-6 : 2023+

NOTES:

8” GDP Portals are NOT compatible with Super ATV’s 3” Lift Kit

NOT compatible with Keller Ball Joints

Wheel Requirements:

22" or larger wheel REQUIRED

Wheels CANNOT exceed 5" backspacing

Wheels NEED to have a center hole of at least 3.25" (82.55mm) or REQUIRE a 1” wheel spacer

Super ATV’s 8” GDP Portal Gear Lift for the Honda Pioneer delivers extreme performance with massive ground clearance and your choice of a 45% or 60% gear reduction, housed in cast or billet aluminum.

It transforms your Pioneer into a mud-dominating beast while protecting your drivetrain by placing the gear reduction in the hub instead of the transmission.

GDP Portals are trusted by more riders than any other thanks to their proven strength, smooth operation, and unmatched durability. Precision-ground 9310 steel gears, reinforced housings, and 5/16” thick advanced alloy backing plates ensure you can ride hard without compromise. Advanced seals, gaskets, and double-angular contact bearings eliminate leaks and wear, while universal hubs with slotted stainless rotors provide reliable braking and wheel compatibility.

For maximum strength, a frame stiffener is required, ensuring your Pioneer can handle the lift and torque. Backed by a top-rated portal support team, GDP portals are built to push your machine to the next level - confidently and reliably.

Kit Includes:

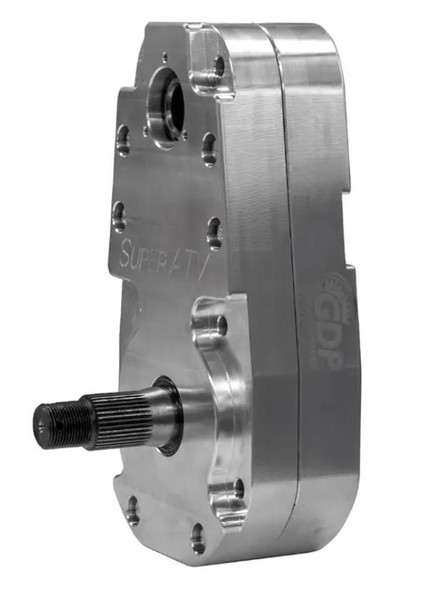

(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings

(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs

(4) Specialized steel alloy backing plates

(2) Bearing carriers

(4) Steel caliper mounting plates

(4) Drive gear spacers

(8) Bushings with (4) steel sleeves

Extended brake lines

All required hardware, including recessed castle nut socket

Frame stiffener (must select at checkout)

Features:

Available with billet or cast aluminum housing

Cool, quiet, precision ground gears made from 9310 alloy billet steel

1.5 in. forward and rear offset

Increases width by 4 in. per side (8 in. total)

1.5 in. diameter 4340 hardened steel driveshaft

Housings use advanced gaskets and rubber O-rings that don’t let anything through

Universal hub fits all major bolt patterns 

Gear reduction reduces stress on your drivetrain

If you are curious about how to install this product, you can view the Install Instructions here.

If you are curious about how to install this product, you can view the Install Instructions here.

This item usually ships in 2-3 business days.
