Can-Am Maverick X3 4" Portal Gear Lift

The 4” GDP Portal Gear Lift for the Can-Am Maverick X3 from Super ATV lets you build your ride your way, whether you’re into mud, racing, dunes, or trail riding. You can choose between a 15% or 30% gear reduction and add dual idler gears for extreme strength. Dual idlers spread the load over more surface area using precisely ground 9310 steel gears, delivering unmatched torque transfer and durability.

These portals are built for every riding style, with the 15% reduction giving you speed with torque, and the 30% option offering serious power for big tires and rough terrain. Dual idlers are perfect for pushing your machine to its limits.

GDP portals are the strongest available, featuring reinforced cast or billet aluminum housings, advanced steel alloy 5/16” backing plates, and optimal oil flow design. There are no vents - just proven strength backed by testing.

They also include advanced gaskets, sealed input gears, double-lipped output seals, and high-grade bearings to ensure leak-free, long-lasting performance. For added durability, a Super ATV Frame Stiffener is recommended to support the extra stress of lifted setups and big tires.

GDP backs its portals with expert support, making it easy to get exactly what your build needs.

Kit Includes:

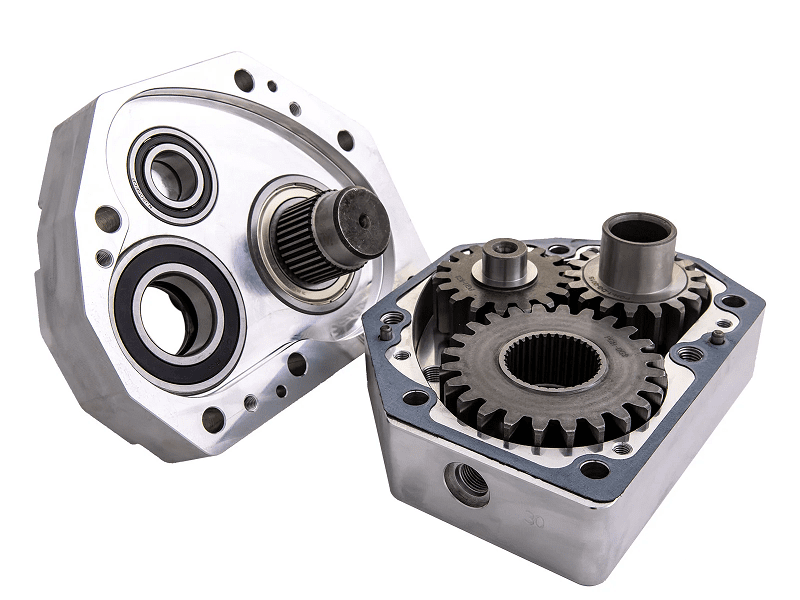

(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings

(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs

(4) Specialized steel alloy backing plates

(4) Steel caliper mounting plates

(2) Steel steering arms

Extended brake lines

All required hardware, including recessed castle nut socket and heim installation tool

Frame stiffener (optional)

Features:

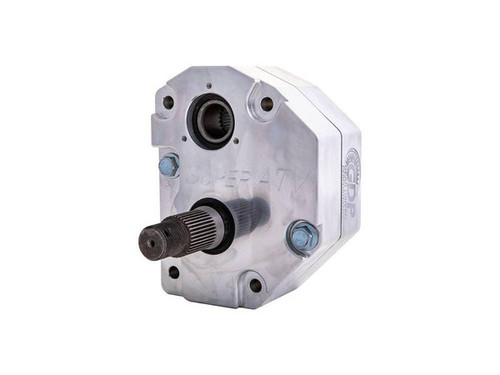

Available with billet or cast aluminum housing

Dual idler gear configuration maximizes strength

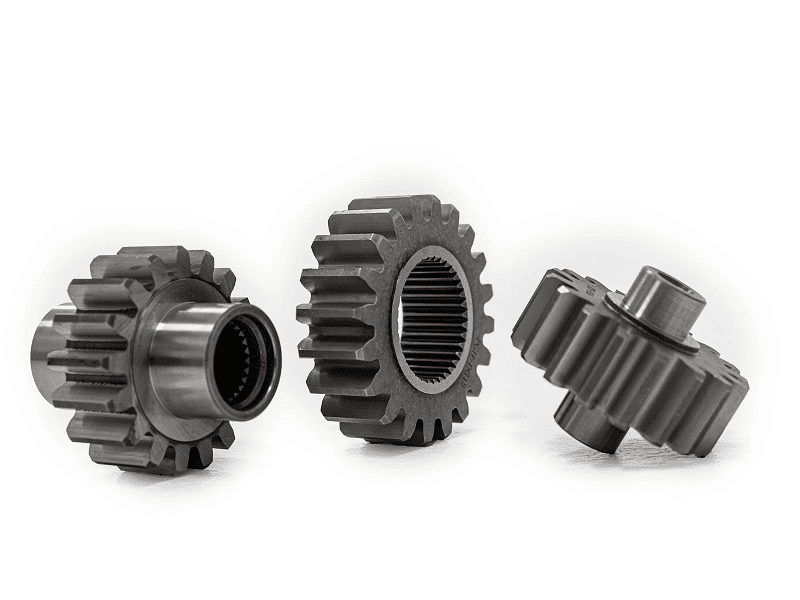

Cool, quiet, precision ground gears made from 9310 alloy billet steel

1.5 in. diameter 4340 hardened steel drive shaft

Housings use advanced gaskets or O-rings that don’t let anything through

Universal hub fits all major bolt patterns

Gear reduction reduces stress on your drivetrain

Dual idler gear configuration adds a 3/4” front and rear offset—1.5” total extension

Lighter than the competition

Wheel Requirements:

14” or larger wheel REQUIRED

14” wheels CANNOT exceed 4-1/2” backspacing 

15” wheels CANNOT exceed 5” backspacing

NOT compatible with dual beadlock wheels

Wheels NEED to have a center hole of at least 3.25" (82.55mm) or REQUIERE a 1” wheel spacer

Fits the Following 64" Models:
Can-Am Maverick X3 900 : 2018
Can-Am Maverick X3 Turbo : 2017-2020
Can-Am Maverick X3 Turbo R : 2018-2020
Can-Am Maverick X3 X DS Turbo R : 2017-2020
Can-Am Maverick X3 DS Turbo R : 2021
Can-Am Maverick X3 X DS Turbo RR : 2020-2021
Can-Am Maverick X3 X MR Turbo : 2018-2021
Can-Am Maverick X3 MAX Turbo : 2017-2020
Can-Am Maverick X3 MAX Turbo R : 2018-2020
Can-Am Maverick X3 MAX X DS Turbo : 2017-2019
Can-Am Maverick X3 MAX X DS Turbo R : 2020
Can-Am Maverick X3 MAX DS Turbo R : 2021
Can-Am Maverick X3 DS Turbo 64 : 2022+
Can-Am Maverick X3 DS Turbo RR 64 : 2022+
Can-Am Maverick X3 X DS Turbo RR 64 : 2022+
Can-Am Maverick X3 X RC Turbo RR 64 : 2022+
Can-Am Maverick X3 X MR Turbo RR 64 : 2022+
Can-Am Maverick X3 MAX DS Turbo 64 : 2022+
Can-Am Maverick X3 MAX DS Turbo RR 64 : 2022+
Can-Am Maverick X3 MAX X DS Turbo RR 64 : 2022+

Fits the Following 72" Models:
Can-Am Maverick X3 X RC Turbo : 2018-2021
Can-Am Maverick X3 X RC Turbo R : 2018-2020
Can-Am Maverick X3 X RC Turbo RR : 2020-2021
Can-Am Maverick X3 X RS Turbo R : 2017-2020
Can-Am Maverick X3 RS Turbo R : 2021
Can-Am Maverick X3 X RS Turbo RR : 2020-2021
Can-Am Maverick X3 X MR Turbo R : 2018-2019
Can-Am Maverick X3 X MR Turbo RR : 2020-2021
Can-Am Maverick X3 MAX X RS Turbo : 2017-2020
Can-Am Maverick X3 MAX X RS Turbo R : 2018-2020
Can-Am Maverick X3 MAX RS Turbo R : 2021
Can-Am Maverick X3 MAX X RS Turbo RR : 2020-2021
Can-Am Maverick X3 MAX X MR Turbo R : 2019-2021
Can-Am Maverick X3 MAX X MR Turbo RR : 2020-2021
Can-Am Maverick X3 MAX X DS Turbo RR : 2020-2021
Can-Am Maverick X3 RS Turbo RR 72 : 2022+
Can-Am Maverick X3 X RS Turbo RR 72 : 2022+
Can-Am Maverick X3 X RS Turbo RR w/ Smart-Shox 72 : 2022+
Can-Am Maverick X3 X RC Turbo RR 72 : 2022+
Can-Am Maverick X3 X MR Turbo RR 72 : 2022+
Can-Am Maverick X3 MAX RS Turbo RR 72 : 2022+
Can-Am Maverick X3 MAX X RS Turbo RR 72 : 2022+
Can-Am Maverick X3 MAX X RS Turbo RR w/ Smart-Shox 72 : 2022+
Can-Am Maverick X3 MAX X MR Turbo RR 72 : 2022+

This item usually ships in 2-3 business days.
