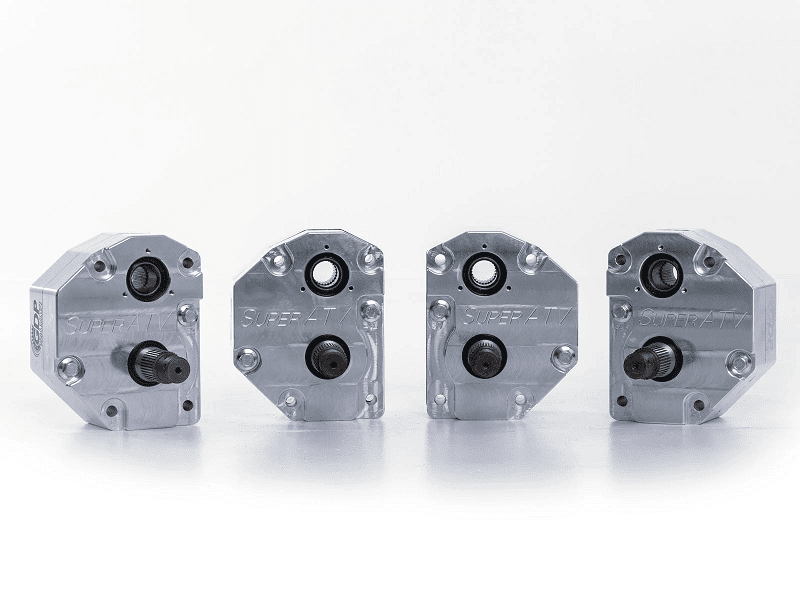

Can-Am Maverick Sport 4" Portal Gear Lift — Unstoppable Power, Precision, and Performance
Take your Maverick to the next level with the Can-Am Maverick Sport 4" Portal Gear Lift from SuperATV’s GDP Portal Series—the industry benchmark for off-road innovation. Engineered for serious riders who demand maximum torque, clearance, and durability, this portal lift kit transforms your machine into a true trail, rock, or mud beast.
Dual Idler Gear Design for Maximum Strength
Unlike single idler systems, our dual idler gear configuration distributes torque evenly across two gears, delivering unmatched strength and smoother power transfer. Each gear is CNC ground from 9310 alloy steel, precision-fitted into either cast or billet aluminum housings—the thickest, strongest on the market. Add in 5/16" advanced steel backing plates (stronger than chromoly) and 4340 hardened steel drive shafts, and you get a drivetrain upgrade built for aggressive riding.
15% or 30% Gear Reduction — Power Your Way
Choose your performance:
-
15% Gear Reduction: Perfect for trail riding and desert runs, maintaining top speed while adding torque.
-
30% Gear Reduction: Ideal for mud riders and rock crawlers craving extreme low-end torque and full throttle control.
With 4 inches of ground clearance and an added 1.5" total width offset, you’ll clear obstacles easily and fit up to 36" tires (with forward A-arms) without a lift kit. The portal gear reduction occurs at the hub, relieving strain on your transmission, differential, prop shaft, and axles—preserving drivetrain life while maximizing performance.
Engineered for Strength, Built for Endurance
Every detail is designed for reliability and precision:
-
Advanced gaskets, O-rings, and sealed bearings ensure 100% sealing coverage
-
Double-angular contact output bearings deliver superior load handling
-
Universal hub fits all major bolt patterns
-
Reinforced housings optimized for oil flow and gear retention
-
Patented design (#11,299,042 & #11,318,787) ensures unmatched durability
Wheel Requirements: 14”+ wheels, max 4” backspacing, 3.25” center hole minimum (1” spacer required for smaller hubs). Not compatible with dual beadlock wheels.
Dominate Every Terrain
Whether you’re blasting through mud, crawling over rocks, or conquering deep ruts, the SuperATV GDP 4" Portal Gear Lift gives your Can-Am Maverick Sport the torque, clearance, and confidence to go farther.
Upgrade today — experience the industry’s strongest and smartest UTV portal lift system.
