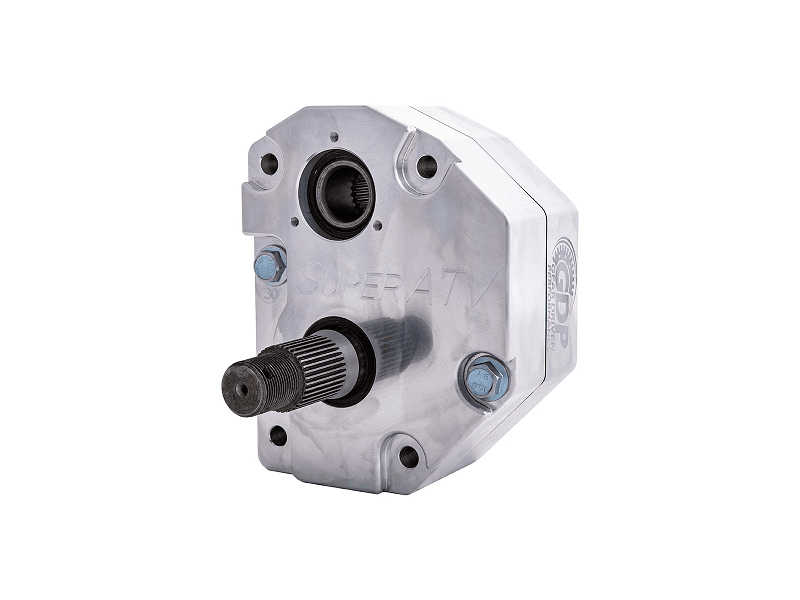

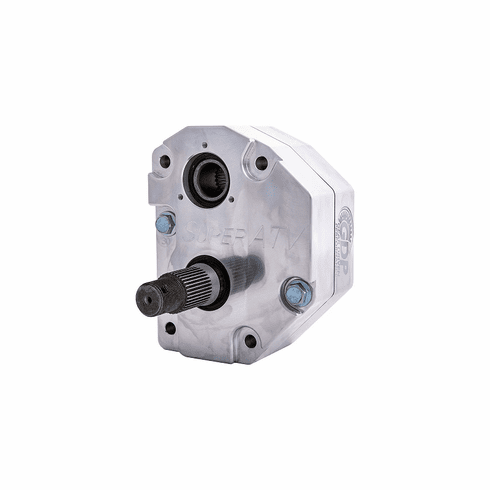

Arctic Cat Wildcat 4" Portal Gear Lift

Super ATV Part Number Kit 1 WILL FIT:
Arctic Cat Wildcat 1000 : 2012-2016
Arctic Cat Wildcat X : 2013
Arctic Cat Wildcat 1000 LTD : 2014

Super ATV Part Number Kit 2 WILL FIT:
Arctic Cat Wildcat 4 Seater : 2013-2016
Arctic Cat Wildcat X : 2014-2016

Wheel Requirements:

14” or larger wheel REQUIRED

Wheels CANNOT exceed 4-1/2” backspacing 

NOT compatible with dual beadlock wheels

Wheels NEED to have a center hole of at least 3.25" (82.55mm) or REQUIRE a 1” wheel spacer

Super ATV’s GDP 4” Gen 3 Portal Gear Lift for the Arctic Cat Wildcat is designed to tackle any terrain with your choice of 15% or 30% gear reductions and durable cast or billet aluminum housings.

A 30% reduction gives you the torque and clearance for mud and rocks, while a 15% reduction is ideal for fast trail and dune riding.

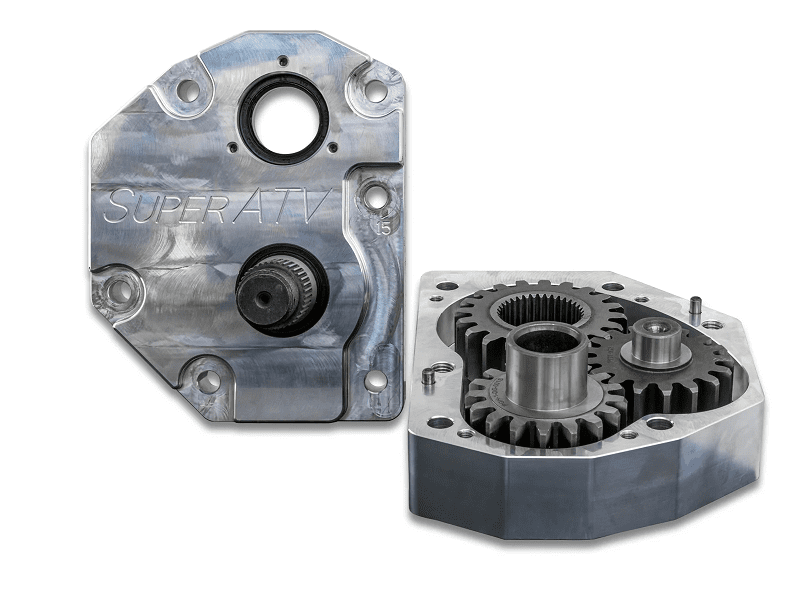

Built with precision-ground 9310 billet steel gears and fully sealed housings, these portals are quiet, strong, and built to last.

Reinforced housing design, superior oil flow, and advanced gaskets and seals ensure top-tier durability and leak-free performance no matter where you ride.

Features:

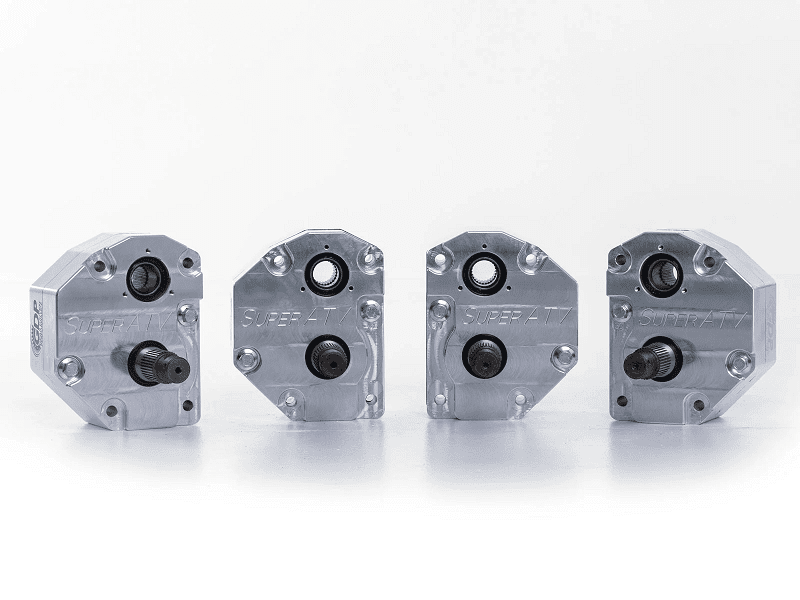

Available with billet or cast aluminum housing

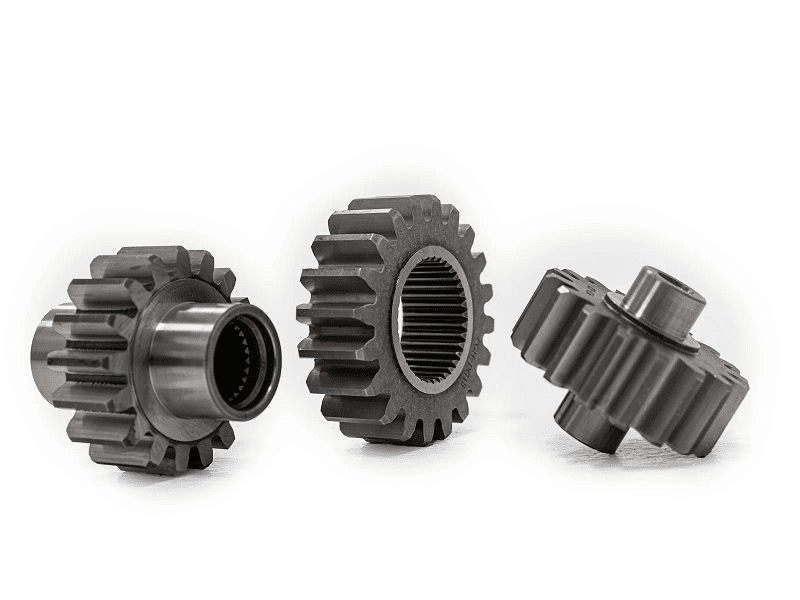

Cool, quiet, precision ground gears made from 9310 alloy billet steel

Increases width by 4 in. per side (8 in. total)

1.5 in. diameter 4340 hardened steel drive shaft

No leak bearings and seals

Universal hub fits all major bolt patterns

Comes complete with all hardware, backing plates, brakes lines and instructions

This item usually ships in 2-3 business days.
