Super ATV 2012-2016 Arctic Cat Wildcat 6" Portal Gear Lift
PGH-5-25-101 :
- Arctic Cat Wildcat 1000 : 2012-2016
- Arctic Cat Wildcat X : 2013
- Arctic Cat Wildcat 1000 LTD : 2014
PGH-5-25-102 :
- Arctic Cat Wildcat 4 Seater : 2013-2016
- Arctic Cat Wildcat X : 2014-2016
Wheel Requirements:
- 18” or larger wheel required
- Wheels cannot exceed 5” backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
Super ATV’s GDP 6" Portal Gear Lift gives your Arctic Cat Wildcat more ground clearance and extra torque in one upgrade.
The lift and gear reduction are built into the portal box, helping maintain suspension geometry while reducing drivetrain stress. Choose between 30% or 45% gear reduction and cast or billet aluminum housings to match the way you ride. A 45% reduction is ideal for extreme mud and rock crawling, while 30% gives you a versatile setup for trails, hills, mud, and higher-speed riding.

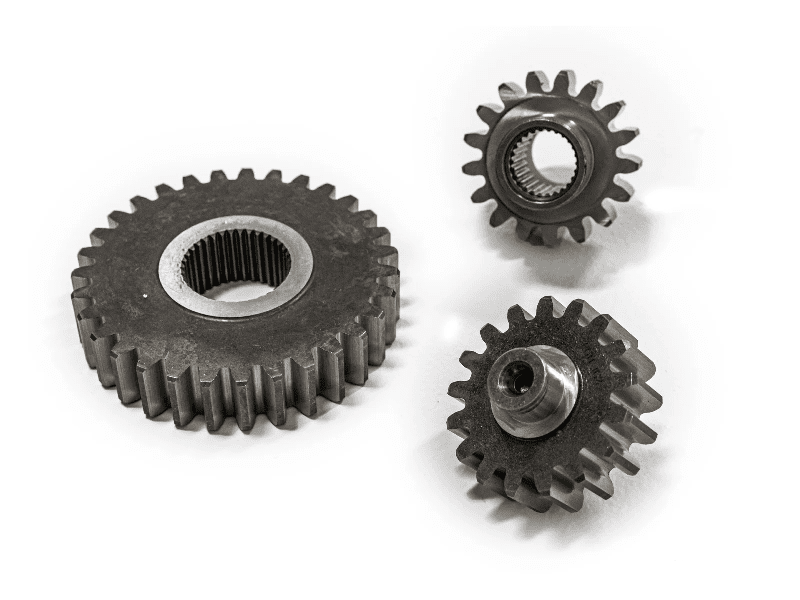

Built for serious abuse, GDP portals feature precision-ground 9310 billet steel gears designed for strength, smooth operation, and high-speed performance. The reinforced housings are engineered to handle heavy loads and hard impacts, with optimized oil flow and gearing forces in mind.
Both cast and billet housings also use advanced, oil-resistant gaskets, a sealed input gear, and a double-lipped output seal for reliable, leak-free performance.
Features:
- Available with billet or cast aluminum housing
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- No leak bearings and seals
- Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115, and 4/110
- Comes complete with all hardware, backing plates, brakes lines and instructions
