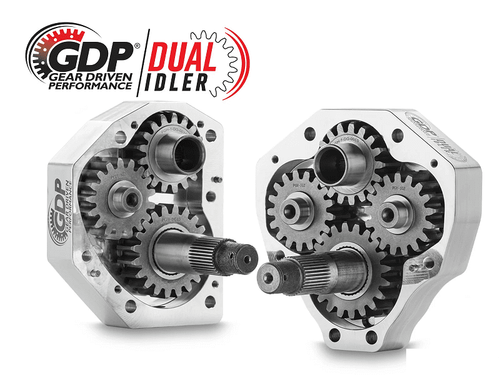

Super ATV 2016+ Polaris General 4" Portal Gear Lift
Fitment:
- Polaris General 1000 : 2016+
- Polaris General 4 1000 : 2017+
NOTE: Does NOT fit 2020+ Polaris General XP 1000 or XP 4 1000
Wheel Requirements:
- 14” or larger wheel REQUIRED
- CANNOT exceed 5” backspacing
- NOT compatible with dual beadlock wheels
- Wheels NEED to have a center hole of at least 3.25" (82.55mm) OR require a 1” wheel spacer
Super TV’s GDP 4” Portal Gear Lift delivers more power, bigger tire capability, and increased ground clearance for your Polaris General - no matter how or where you ride.
With your choice of 15% or 30% gear reduction, you can fine-tune your setup for fast, agile trail riding or maximum torque for mud and rocks. Choose between cast or billet aluminum housings, and upgrade to Dual Idler gears for the strongest portal system available. No matter the configuration, GDP portals completely transform your machine’s performance and capability.
What sets GDP portals apart is strength, precision, and smart engineering. Dual idler gears spread the load over more surface area for smoother, more reliable torque transfer, while precision-ground 9310 steel gears deliver unmatched durability. Because the gear reduction happens at the hub, stress on your axles, differential, and transmission is reduced - letting you ride harder with less wear.
Reinforced housings, advanced backing plates, optimized oil flow, and high-quality gaskets, seals, and bearings work together to prevent leaks and premature wear, giving you a portal system you can trust on every ride.
4” Portal Gear Lift Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Steel steering arms
- Extended brake lines
- All required hardware, including recessed castle nut socket
Features:
- Available with billet or cast aluminum housing
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 3/4” front and rear offset - 1.5” total extension
- Lighter than the competition
