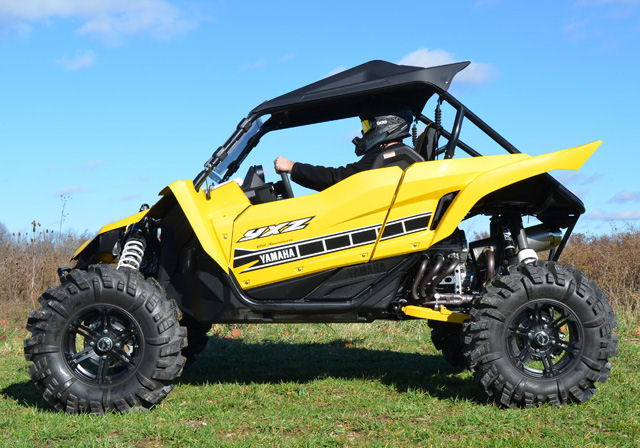

2016+ Yamaha YXZ1000R 4" Portal Gear Lift

Fits:

2016+ Yamaha YXZ




SuperATV's GDP 4 Portal Gear Lift for the Yamaha YXZ offers versatility with options for 15% or 30% gear reductions and a choice between cast or billet aluminum housings.

Ideal for various terrains, a 30% gear reduction enhances torque for conquering mud holes, while a 15% reduction provides agility for trails. Precision-ground gears made from 9310 billet steel alloy ensure durability and quiet operation. The housings, available in cast or CNC-machined 6061 billet aluminum, are reinforced for strength and feature advanced gaskets and seals to prevent oil leaks.

With top-rated customer service, SuperATV ensures you find the perfect portals for your needs.

Features:

• Available with billet or cast aluminum housing

• Cool, quiet, precision ground gears made from 9310 alloy billet steel

• Increases width by 4 in. per side (8 in. total)

• 1.5 in. diameter 4340 hardened steel drive shaft

• No leak bearings and seals

• Universal hub fits all major bolt patterns

• Comes complete with all hardware, backing plates, brakes lines and instructions

  Wheel Requirements:

  -14 or larger wheel required

  -14" & 15" wheels cannot exceed 4.5" backspacing

  -16" and larger wheels cannot exceed 5" backspacing

  -If using factory 14" wheels, you must run 2" wheel spacers

  -Not compatible with dual beadlock wheels

  -Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1 wheel spacer


  If you are curious about how to install this product, you can view the Install Instructions here.

  .




















  Tire Size	Required Suspension Set Up with 4" Portals	Recommended 4" Portal Gear Reduction
  Up to 32"	Stock	15%
  33" to 34"	3" Lift Kit	15%
