VIAIR Nomad Constant Duty On Board Air System - 200 PSI / 1.58 CFMZoom

VIAIR Nomad Constant Duty On Board Air System - 200 PSI / 1.58 CFM

Item# VIAIR-50021
$459.95$499.99You Save - $40.04 (8%)
Qty:

Description

VIAIR Nomad Constant Duty On Board Air System - 200 PSI / 1.58 CFM - #50021

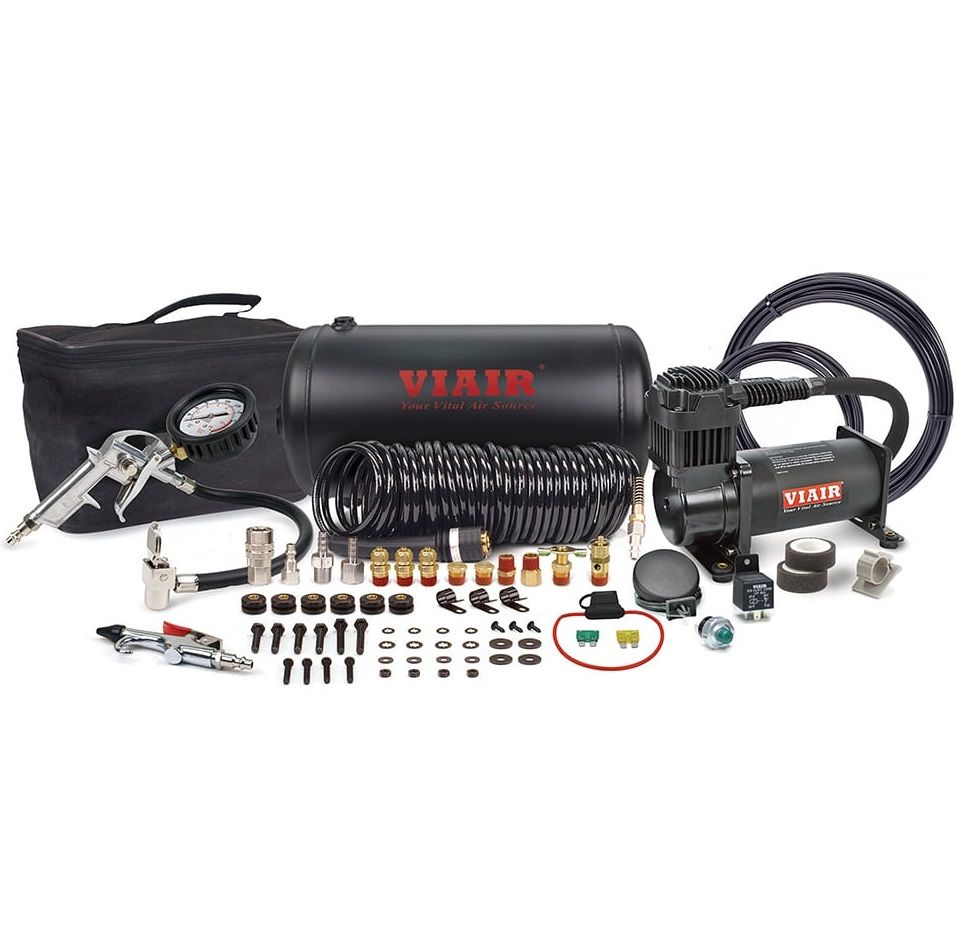

The Nomad Constant Duty OBA by VIAIR® operates at 200 PSI with a flow rate of 1.58 CFM from a 1.5 gallon tank and powered by a 380C Stealth Black compressor. Van Life OBA’s are capable of quick tire inflation and other pneumatic tasks with all accessories necessary for installing a working system in your vehicle.

NOTE: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Specifications:
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
  • Max. Working Pressure: 200 PSI
  • Max. 12V Amp Draw: 23-Amps
  • Ingress Protection Rating: IP67


  • Features:

    • 380C Stealth Black VIAIR® Compressor w/ Thermal Overload Protector
    • 1.5 Gallon Matte Black VIAIR® Air Tank (200 PSI)
    • Pressure Switch (165 PSI on, 200 PSI off)
    • 40-Amp 4-Prong Relay
    • Moisture Resistant Fuse Holder
    • Mechanical Tire Inflation Gun w/ 160 PSI Gauge
    • 30ft. Inside Braided Black Coil Hose w/ Quick Connect & stud
    • Rubber-Tipped Blow Gun
    • Air Source relocation Kit
    • 1/4" (M) to 1/4" (M) NPT Reducer
    • 1/4" (M) to 1/8" (F) NPT Reducer
    • 5 Pc. Tank Port Fittings Kit (For 200 PSI Rated Systems)
    • VIAIR® Storage Bag


    • Recommended Components (Sold Separately):

      • Illuminated Dash Panel Gauge, 200PSI (P/N 20066)
This item usually ships in 1-2 business days.
