Can-Am Maverick 6" Portal Gear Lift

Super ATV Part Number 7-32-101 Fits the Following:
Can-Am Maverick Standard : 2013-2015
Can-Am Maverick X RS : 2013-2015
Can-Am Maverick X RS-DPS : 2014-2015
Can-Am Maverick X XC : 2014-2015

Super ATV Part Number 7-32-103 Fits the Following:
Can-Am Maverick Standard : 2016+
Can-Am Maverick DPS : 2016+
Can-Am Maverick XC : 2016+
Can-Am Maverick X XC : 2016+

Super ATV Part Number 7-32-104 Fits the Following:
Can-Am Maverick Max Standard : 2014-2015
Can-Am Maverick Max XRS : 2014-2015
Can-Am Maverick Max XRS-DPS : 2014-2015

Super ATV Part Number 7-32-102 Fits the Following:
Can-Am Maverick X MR : 2014-2015

Super ATV Part Number 7-51-101 Fits the Following:
Can-Am Maverick Turbo : 2016-2017
Can-Am Maverick X DS : 2015-2016
Can-Am Maverick X DS Turbo : 2015-2016
Can-Am Maverick X MR : 2016+
Can-Am Maverick X RS Turbo : 2016

Super ATV Part Number 7-51-102 Fits the Following:
Can-Am Maverick MAX Turbo : 2016-2017
Can-Am Maverick MAX X DS : 2015-2017
Can-Am Maverick MAX X DS Turbo : 2015-2017
Can-Am Maverick MAX DPS : 2016+
Can-Am Maverick MAX X RS Turbo : 2016-2017
Can-Am Maverick MAX X MR : 2017+

Wheel Requirements:

18� or larger wheel REQUIRED

Wheels CANNOT exceed 5� backspacing 

Wheels NEED to have a center hole of at least 3.25" (82.55mm) or REQUIRE a 1� wheel spacer

Super ATV�s Gen 3 GDP 6" Portal Gear Lifts are built for riders who want more torque, ground clearance, and durability - no matter the terrain.

Offering either a 30% or 45% gear reduction, these portals let you run bigger tires and dominate in mud, trails, dunes, or mountains. Unlike traditional gear setups, GDP places the reduction in the hub, protecting critical drivetrain components like the axles, differential, and transmission from excess strain.

What sets these portals apart is their use of precision-ground 9310 alloy steel gears that deliver smooth, reliable performance under pressure. The housings - available in either cast or USA-made billet aluminum - are reinforced in all the right places for better strength and optimized oil flow. There are no vents to worry about because GDP�s testing showed they do more harm than good.

Backing plates made from 5/16" advanced steel alloy outperform even chromoly steel in strength and durability, ensuring your system can withstand extreme riding. Sealing is top-notch thanks to advanced gaskets, a sealed input gear, double-lipped output seals, and complete oil containment, eliminating leaks.

High-load demands are no issue with double-angular contact bearings on the output shaft and roller bearings for the idler gear, both chosen for their ability to endure hard impacts and maintain performance. You also get universal hubs that support multiple bolt patterns (4/156, 4/137, 4/115, and 4/110), plus slotted stainless steel rotors that stay cool and deliver reliable braking.

GDP portals aren�t just strong - they�re backed by unmatched real-world testing, expert design, and a dedicated support team to help you get the right setup for your machine. If you want a battle-ready portal system that�s already proven in the wild, GDP is the name to trust.

Kit Includes:

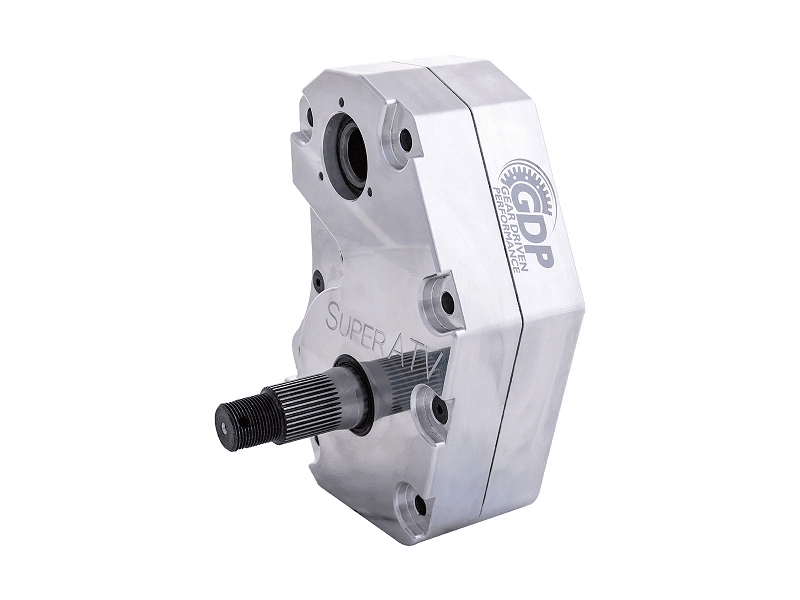

(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, Thermo-Tork gaskets, and thrust bearings

(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs

(4) Specialized steel alloy backing plates

(4) Steel caliper mounting plates

(2) Caliper adapter plates

(2) Steel steering arms

Extended brake lines

All required hardware, including recessed castle nut socket

Features:

Available with billet or cast aluminum housing

Cool, quiet, precision ground gears made from 9310 alloy billet steel

Increases width by 4 in. per side (8 in. total)

1.5 in. diameter 4340 hardened steel drive shaft

Housings use advanced gaskets that don�t let anything through

Universal hub fits all major bolt patterns

Gear reduction reduces stress on your drivetrain

Weighs 224 lb. total, which is 25+ lb. lighter than the competition

This item usually ships in 2-3 business days.
