Super ATV | Kawasaki Teryx KRX 1000 | 1000 4 | Portal Gear 4" Lift
Item# SUP-PGH-4-88-151
Description
Fits:
2020+ Kawasaki KRX 1000
2023+ Kawasaki KRX 4 1000
NOTE: Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1 wheel spacer.
SuperATV's GDP 4 Portal Gear Lift for the Kawasaki Teryx KRX 1000 offers a customizable and high-performance solution for side-by-side enthusiasts. With options for gear reduction (15% or 30%) and a choice between cast or billet aluminum housings, riders can tailor their experience to match their preferences.
The 4 lift is particularly suited for mud adventures, preventing swamp encounters and allowing for larger tires with a torque boost for easy mud navigation. The gear reduction's strategic placement in the hub protects the drivetrain, reducing stress on axles, differentials, prop shaft, and transmission. Premium gears made from a robust 9310 alloy steel ensure smooth operation and longevity.

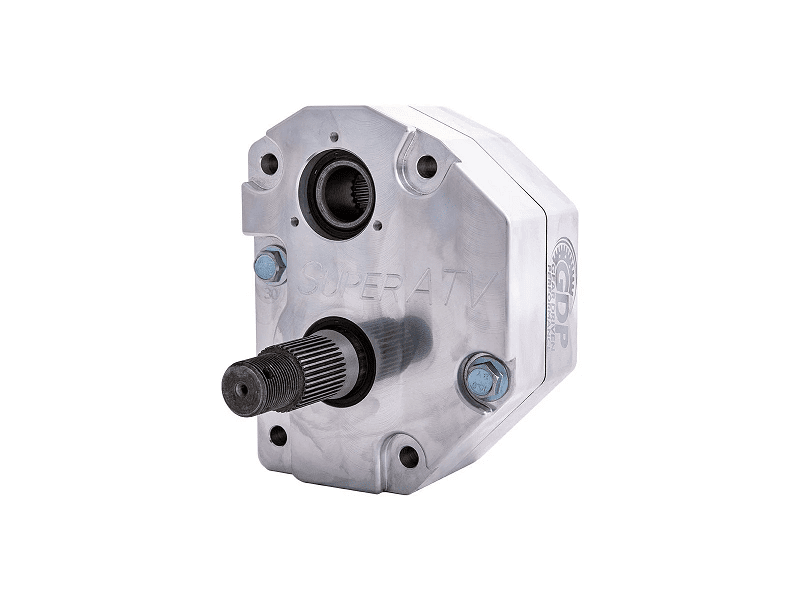

The housing, a critical component of the portal gear lift, comes in two unbeatable options: cast or USA-made 6061 billet aluminum with a CNC-machined finish. Both options are reinforced in key areas, designed for optimal oil flow and gearing forces, and omit vents to avoid potential harm. Backing plates, made from an advanced steel alloy, are exceptionally strong with a thickness of 5/16", surpassing chromoly strength. Advanced gaskets and seals, regardless of housing choice, provide superior oil resistance and prevent leaks.
Bearings play a crucial role in ensuring smooth operation, with strong roller bearings for the idler gear and a double-angular contact bearing for the output bearing, built to withstand extensive use. The GDP portals feature precision-ground, stainless steel slotted rotors for effective cooling and braking power. Universal hubs with various bolt patterns allow compatibility with a wide range of side-by-side wheels. The tapered output shaft provides a secure lock without wobbling over time.
Kit Includes:
2020+ Kawasaki KRX 1000
2023+ Kawasaki KRX 4 1000
NOTE: Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1 wheel spacer.
SuperATV's GDP 4 Portal Gear Lift for the Kawasaki Teryx KRX 1000 offers a customizable and high-performance solution for side-by-side enthusiasts. With options for gear reduction (15% or 30%) and a choice between cast or billet aluminum housings, riders can tailor their experience to match their preferences.
The 4 lift is particularly suited for mud adventures, preventing swamp encounters and allowing for larger tires with a torque boost for easy mud navigation. The gear reduction's strategic placement in the hub protects the drivetrain, reducing stress on axles, differentials, prop shaft, and transmission. Premium gears made from a robust 9310 alloy steel ensure smooth operation and longevity.
The housing, a critical component of the portal gear lift, comes in two unbeatable options: cast or USA-made 6061 billet aluminum with a CNC-machined finish. Both options are reinforced in key areas, designed for optimal oil flow and gearing forces, and omit vents to avoid potential harm. Backing plates, made from an advanced steel alloy, are exceptionally strong with a thickness of 5/16", surpassing chromoly strength. Advanced gaskets and seals, regardless of housing choice, provide superior oil resistance and prevent leaks.
Bearings play a crucial role in ensuring smooth operation, with strong roller bearings for the idler gear and a double-angular contact bearing for the output bearing, built to withstand extensive use. The GDP portals feature precision-ground, stainless steel slotted rotors for effective cooling and braking power. Universal hubs with various bolt patterns allow compatibility with a wide range of side-by-side wheels. The tapered output shaft provides a secure lock without wobbling over time.
Kit Includes:
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings.
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates with spacers
- (2) Steel steering arms
- Extended brake lines with parking brake and brake cable brackets
- All required hardware, including recessed castle nut socket
Features:- Available with billet or cast aluminum housings
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel driveshaft
- Housings use advanced gaskets that dont let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Weighs 194 lb. total, which is 50+ lb. lighter than the competition
Wheel Requirements:- 14 or larger wheel required
- Cannot exceed 5 backspacing
- Not compatible with dual beadlock wheels
- Stock wheels require 30 mm wheel spacers.
If you are curious about how to install this product on the 1000, you can view the Install Instructions here.
If you are curious about how to install this product on the 1000 4, you can view the Install Instructions here.
This item usually ships in 2-3 business days.
Max Tire Size Required Suspension Setup w/ 4" Portals Recommended 4" Portal Gear Reduction Up to 35" Stock 15% Up to 40" high Clearance 1.5" Foward Offset A-Arms 30%
