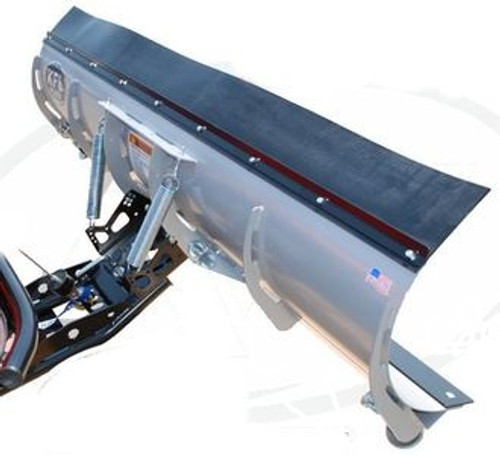

New Holland UTV Open Trail Plow SystemZoom

New Holland UTV Open Trail Plow System

Item# kfi-snwplw-NewHolland
$538.00$700.00You Save - $162.00 (23%)
Blade Size:
Vehicle:
Add Plow Markers:
Add Electric Hydraulic Angle Kit:
Qty:

Description


New Holland UTV's are synonymous with the snow and the good news is they make great snow-plowing vehicles for the Rustler Series! Pair any one of the New Holland UTV's with a KFI Open Trail Plow Kit and you have yourself a driveway clearing stud. KFI Snow Plow Kits are a perfect way to utilize your UTV even when the winter months settle in.

Note: Mounts listed below will use the #105635UTV push tubes. Plow mount includes a lower 2" Receiver Hitch (built-in. Requires stock front bumper.

Plow Kit comes complete with:

(1) Plow Blade (your choice of size)
(1) UTV Push Tube
(1) Vehicle Specific Mount (make sure to select your correct vehicle above)



- Does not include winch or winch mount
- 60" blades do not include 2-ply top rubber flap, must be purchased separately


All Plow Components Feature:
  • Complete installation instructions included
  • All mounting hardware included
  • KFI satisfaction guaranteed
  • 2-Year KFI Warranty
  • Powdercoated for maximum durability
  • Components are metal bead blasted before they are powder coated for the best possible finish prep.
  • 100% Made in the USA
UTV Straight Plow Blades
  • Pushes snow straight ahead or to the sides up to 25 degrees
  • Added gusseting for the wider width and heavier UTV
  • Includes a 7" high 2-ply top rubber flap
  • Measures 16" Tall and 60", 66" or 72" Wide
  • Fully-adjustable blade skids with bolt-on brackets
  • Heavy duty 3"-diameter grade-50 steel skid plates
  • Blade Constructed of 11 ga steel
  • 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
  • 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
  • Wear Bar attached with Heavy Duty Grade 8 Bolts
UTV Pro Poly Plow Blades
  • 3/16" Grade 50 Steel Rib and Frame construction
  • Shot Blasted and Powder Coated Black Steel Frame
  • Flexible Heavy Duty Black Poly face
  • Same weight as steel blades
  • 2-Sided 3/16" Grade 50 Steel attached with Grade 8 bolts
  • Includes Plow Markers
  • Replaceable Blade Face
  • 66" and 72" Options
  • Includes snow flap
  • Dual Curvature face for supreme snow moving
  • 21" Vertical blade face height with an approximate 27" height with snow flap
  • Works with current KFI No.105635 UTV Tube System
  • Heavy Duty 1/2" thick Adjustable Skids
UTV Push Tubes
  • Front Mount Design with 30" of lift height
  • Heavy Duty 1-1/2" 11 Gage Steel Tubing
  • Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
  • 6" Diameter Zinc Plated Rotator Bushing
  • Easy-Pull Pin Blade angle adjustment
  • Multi-position Plow Lift Bracket
  • 6 five degree blade pitch adjustments
  • 3 blade angle positions that rotate the blade up to 25 Degrees
  • Fully-adjustable blade skids with bolt-on brackets
UTV Plow Mount
  • Front-Mount System
  • Plate constructed from 3/16" Grade 50 Steel
  • All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
  • All Plow tabs are tapered to help reduce hang-ups while trail riding
Usually ships in 2-3 business days
