HCR Racing Honda Talon 1000R Long Travel Suspension System

HCR Racing Honda Talon 1000R Long Travel Suspension System

The HCR Suspension's Honda Talon Dual-Sport Long-Travel Suspension System delivers superior stability and control whether you're tackling dunes, desert, or rock crawling. Upgrade your ride with enhanced strength and performance that outperforms stock components.

Features

• Added Strength and Appeal with the HCR Badge
• 72" Width At the Wheel – Overall width depends on wheel and tire combo
• Added 3.3" Wheel Base – 96" total
• Suspension Travel: 17.7" Front, 20" Rear + 1" Wheel Travel
• Front High Clearance Design for optimal off-road performance
• Rear High Clearance Design adds 1-5/8" of clearance
• Adds 15 lbs overall (~3.75 lbs per corner)
• Laser Cut construction for precise fit and finish
• CNC'd Chromoly mounting points for increased integrity
• HCR Custom Alloy boasting 30% more strength than Chromoly

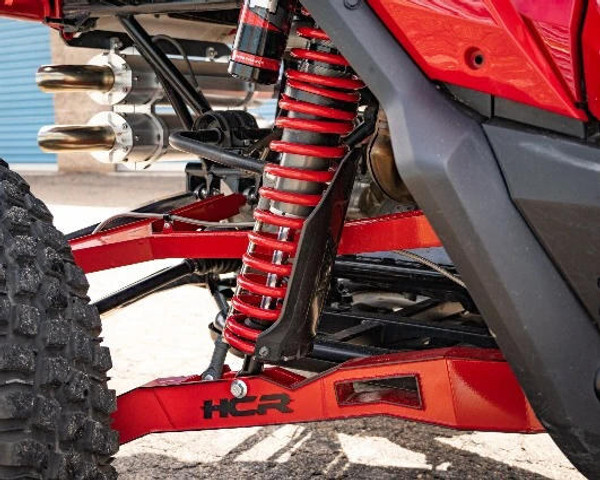

• High Clearance Boxed Front A-Arm Design
• Hand Tig Welded for strength and aesthetics
• Re-use of OEM ball joints for low speed steering ease & smooth travel with less maintenance
• High-Clearance Rear Trailing Arms increase ground clearance by 1.75"
• 100% Proudly Made in the U.S.A.

Includes

• 4 - Front A-Arms
• 2 - Tie Rod Extensions
• 2 - Upper Rear A-Arms
• 2 - Rear Trailing Arms
• 4 - Radius Race Links (.120 Wall)
• 4 - RCV Axle Bars (Reuse Factory CV's)
• 2 - Rear Brake Lines
• Complete Hardware Kit

Note: Reuses all Factory Ball Joints and Shocks.

Upgrade your Honda Talon 1000R today with the HCR Long Travel Suspension System. Visit www.sidebysidesports.com to order now!
