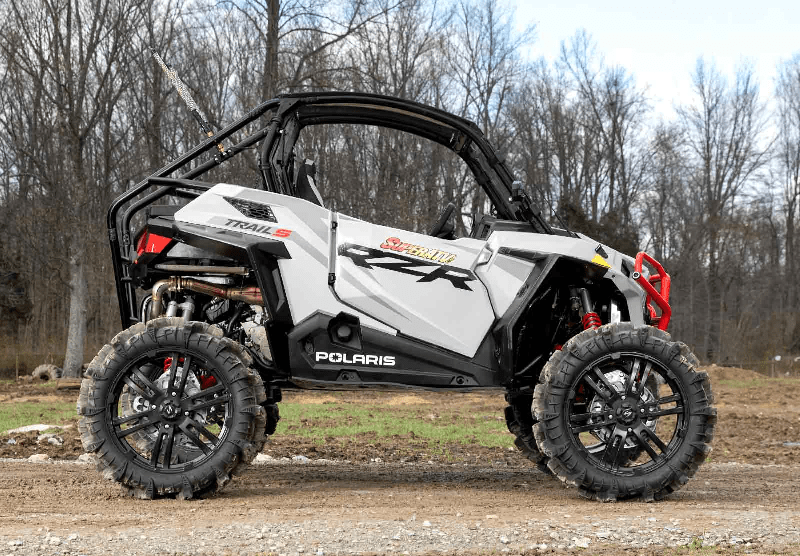

Polaris RZR 900 2015+ 6" Portal Gear Lift By SuperAtv
Polaris RZR 900 6" Portal Gear Lift
Polaris RZR 900 Trail : 2015+
Polaris RZR 900 XC : 2015+
Polaris RZR S 900 : 2015+
Polaris RZR S 1000 : 2016+
Polaris RZR 4 900 : 2015+
Why We Make Them?
Take back your torque with Gear Driven Performance by SuperATV. We all know monster tires rob your much-desired horsepower. To keep that ultimate performance and gain an extra 6” of coveted lift, you want GDP from SuperATV.
The GDP portal lift system spares no details as the most comprehensive kit on the market. SuperATV knows suspension and transferred over 10 years of suspension engineering into the GDP portal lifts. GDP starts by vertically relocating the axle centerline while retaining factory steering geometry – a must if you want to increase the life of your axles, differential, and drive train components. Pair that with a 1.82:1 gear reduction (approximately 45%), and you’ve got a performance driven machine!
Pair with SuperATV lift kits, a arms, and axles for extreme performance
45% gear reduction
Designed for all terrains and riding styles
You will not chop your axles. GDP is the only kit on the market compatible with aftermarket and OEM axles with no modifications
GDP maintains performance-ready axle angles
Impenetrable Bearings and Seals
First in the industry thrust bearing that is specifically designed to take axial load, unlike the standard bearing that is only sufficient for radial loads
Automotive grade bearings
Press fit, precision ground gears and shafts to eliminate unwanted slop

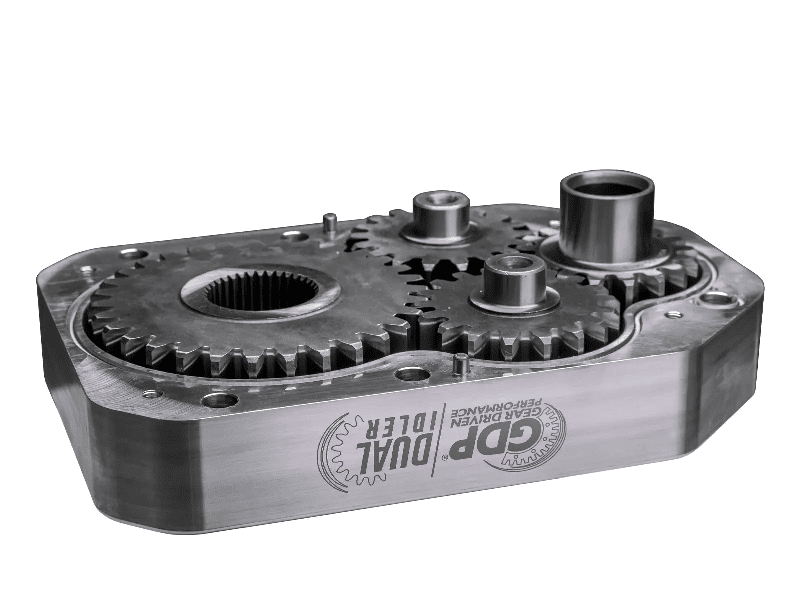

Precision-Ground Gears: drive gear, idler gear and driven gear
Precision-ground chromium titanium alloy gears for industry best performance
Eliminates friction for reduced heat, noise and allows you to run at higher speeds
Reduced friction build-up
Quiet gears at all speeds
Performs at machine's fullest capacity
Heavy duty structural member
10.9 grade hardware
Modular design for improved functionality
CNC machined aluminum housing
Polished aluminum for long lasting, stylish finish
How About Adjustability? Pair with our adjustable a arms
GDP understands the need for adjustability allowing you to custom tailor your machine to match your riding needs
Eliminates unwanted, premature tire wear caused from misalignment
Camber adjustability on all SuperATV a arms
Mounting Plates and Pivot Blocks
CNC formed, fully gusseted 5/16” mounting plates
Forged pivot blocks
Forged front mounting plates
Slotted Rotors for Unmatched Cooling
Large 13" Rotors
Each wheel hub includes 4 bolt patterns 4/156, 4/137, 4/115, 4/110
Ability to utilize different wheels on same hub
Stainless steel, braided brake lines included in each kit
Requires an 18" or larger wheel
18" wheels can not exceed 4-1/2" backspacing
20" and larger wheels can not exceed 5" backspacing
Recessed Nut Kit required for most aftermarket axles. Not required when using Stock, Rhino Brand and ADR axles.
Suspension Setup ----- Max Tire Size
2" Lift Kit 30"
1.5" Forward Offset a-Arms 32"
1.5" Forward Front A-Arms and 2" Lift Kit 32"
7-10" Lift Kit 44"
Measurements taken with suspension fully compressed and at max turn. Although these are not fully representative of normal riding conditions, stated tire sizes will not rub. With minimal rubbing or trimming, larger sizes can be used.
