KFI Yamaha Viking | Wolverine | X2 | X4 Winch MountZoom

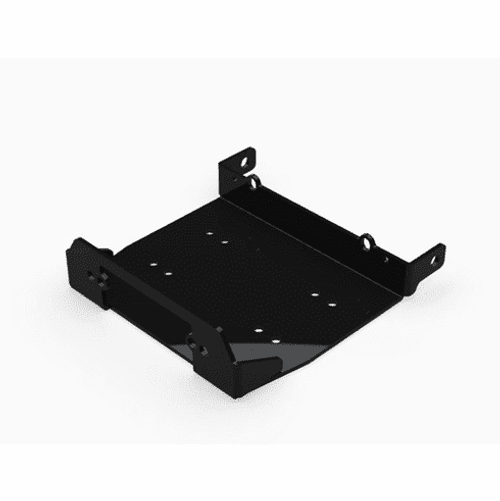

KFI Yamaha Viking | Wolverine | X2 | X4 Winch Mount

Item# kfi-101515
$49.95$59.95You Save - $10.00 (17%)
Qty:

Description

Fits: Yamaha Viking 4x4 2014+
Yamaha Viking VI 2015+
Yamaha Wolverine R-Spec | SE 2016-2018
Yamaha Wolverine X2 2019+
Yamaha Wolverine X4 2018+


Specifications:

  • 100% MADE IN USA
  • Constructed of 3/16" steel
  • Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep
  • Powder coated black for supreme durability
  • Very easy to install
  • Complete installation instructions included
  • All mounting hardware included
  • Satisfaction guaranteed
  • Roller fairlead and winch not included


Designed to work with the following winches:

KFI on VIKING / Viking VI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2 / AS-50 / AS-50w (Will NOT work with U45w-R2 or SE45w-R2 WIDE winches)
KFI on WOLVERINE: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35 / AS-50 / AS-50w (Will NOT work with U45-R2, U45w-R2, SE45-R2 or SE45w-R2 winches)
KFI on WOLVERINE X2 and X4: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AS-50 / AS-50w
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: RT40 / XT40 (Requires the drilling of two holes)
WARN: Vantage 2000-3000lb
WARN: Vantage 4000lb (Requires the drilling of two holes)
WARN: ProVantage 2500-3500lbs
WARN: ProVantage 4500lbs (Requires the drilling of two holes)
RAMSEY : ATV2500 / ATV3000
SUPERWINCH : Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
SUPERWINCH : Terra 45 (Requires drilling of two holes)
MILE MARKER : PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500 (2-hole mounted winches will require the drilling of one hole) CYCLE COUNTRY : Work Power 1500 and 2500 / Powermax 2500 and 3500
BADLAND: 2-Hole Winches (Click Here for Details) (Requires drilling of hole(s))
BADLAND: Standard Winches (Click Here for Details)
BADLAND: WIDE Winches (Click Here for Details) (Requires drilling of two holes)
CHAMPION : 2-Hole Winches (Click Here for Details)
CHAMPION : Standard Winches (Click Here for Details)
CHAMPION : WIDE Winches (Click Here for Details) (Requires drilling of two holes)
KEEPER CORP. TRAKKER : KT2500 / KT3000 / KT2500C / KT3000C
KEEPER CORP. TRAKKER : KT4000 / KT4000C (Requires the drilling of two holes)
KEEPER CORP. TRAKKER : KT2000 (Requires the drilling of one holes)
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
SMITTYBILT : XRC 2.0 (Requires drilling of one holes)
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
Listed models come with incorrect ATV roller fairleads.
SMITTYBILT : XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
4-Hole Standard (3.00" x 4.875" bolt pattern)
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
All with 3.00" x 4.875" bolt pattern mount-up.
All with 3.00" x 6.600" bolt pattern mount-up will require the drilling of two holes.
Traveller: 1078088 / 1078302
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
Possibly many others with the below standard mounting patterns, call to confirm.
4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
4-Hole WIDE that will require the drilling of two holes (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
2-Hole that will require the drilling of one hole (3.10" with rollers that are 4.875" bolt pattern)


Usually ships in 2-3 business days
