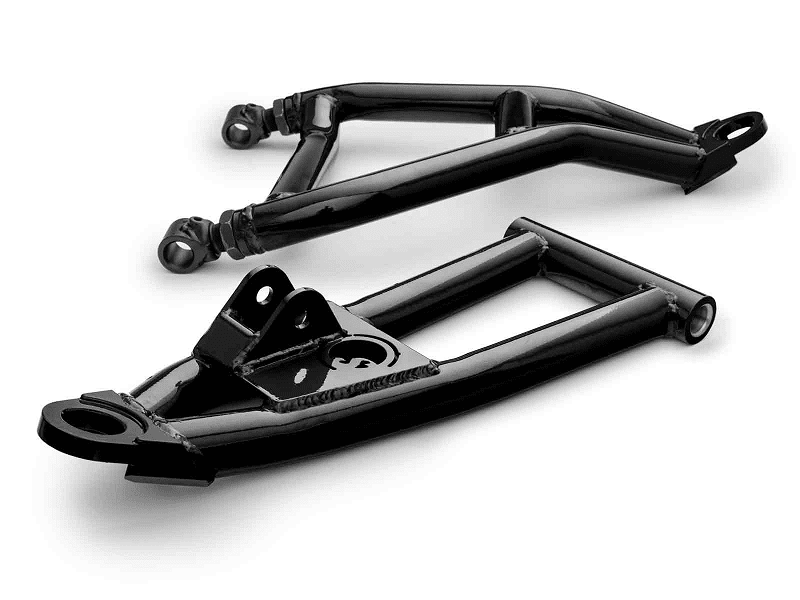

Super ATV 2016+ Honda Pioneer 1000 Atlas Pro 1.5" Forward Offset A-Arms
Fitment:
- Honda Pioneer 1000 : 2016+
- Honda Pioneer 1000-5 : 2016+
- Honda Pioneer 1000 Deluxe : 2016+
- Honda Pioneer 1000-5 Deluxe : 2016+
- Honda Pioneer 1000 Limited Edition : 2017+
- Honda Pioneer 1000-5 Limited Edition : 2017+
- Honda Pioneer 1000-6 : 2023+
NOTES:
- Pioneer 1000 or Pioneer 1000-5 Limited Edition Models will require Rhino 2.0 axles
- You may need wheel spacers when running 12” wheels
- If you want to run offset A-arms with our 3" Lift Kit, you must have Rhino Brand Axles. Stock axles will bind.
- Does NOT fit Trail models if using with a lift kit.
- A-Arms with Keller Ball Joints will not work with Portal Gear Lifts

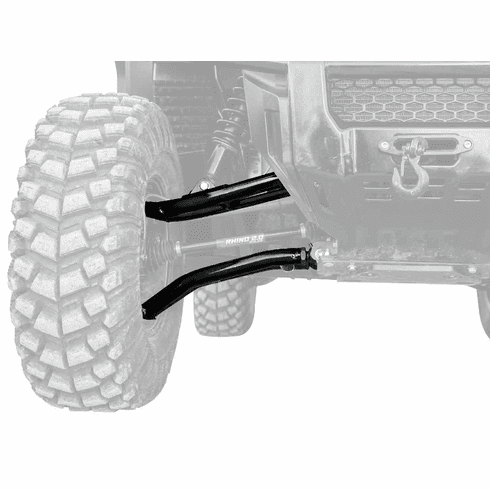

When the trail turns steep and rocky, Super ATV’s Honda Pioneer 1000 Atlas Pro 1.5” Forward Offset A-Arms give you the edge your buddies don’t have.
These rugged A-Arms add ground clearance, improve stability, and make room for 31” tires without a lift, helping you crawl over boulders that stop stock machines in their tracks. With a longer wheelbase and extra clearance, you’ll climb harder, ride smoother, and tackle hills with confidence instead of hesitation.
Built bigger and stronger than stock, Atlas Pro A-arms feature oversized tubing and a durable, UV-resistant powder coat that won’t rust. The added 1.5” of ground clearance keeps you from hanging up on obstacles, while adjustable pivot blocks let you fine-tune camber to protect your tires - especially if you’ve upgraded other components.
For even more convenience, you can have Super ATV ball joints preinstalled at no extra charge, saving you time in the garage and getting you back on the trail faster.
NOTE: You must re-use your stock ball joints if you don’t select a pre-installed ball joint at checkout.
-
Keller Ball Joints
-
Two-piece, threaded design—no snap ring required
-
Threads onto A-arms like a nut and bolt for a virtually pullout-proof hold
-
Chromoly steel stud with an advanced tool-steel body
-
Ideal for larger machines, bigger tires, and aggressive riding
-
Fully greaseable and rebuildable for long-term performance
-
-
Heavy-Duty Ball Joints
-
Made from hardened 4340 VAR steel with zinc plating for maximum strength
-
Built for extreme riding, from hill climbs to hard landings
-
Easily accessible grease zerks for simple maintenance
-
Adjustable design for extended service life
-
Proven through lab and field testing to handle 2x the pressure of OEM ball joints
-
Features:
- Adds a 1.5” forward offset
- Fit up to 31” tires
- Made with 1.5” diameter tubing
- 0.5” larger than stock
- 0.25” larger than our standard High-Clearance 1.5” Forward Offset A-Arms
- Adjustable lower pivot blocks for full camber adjustability
- Includes high-quality bushings at no extra cost
- UV-resistant powder coat finish
- Easy to install
- Backed by a lifetime warranty
