SuperATV Polaris RZR Turbo R 8" Portal Gear Lift
Description
SuperATV Polaris RZR Turbo R 8" Portal Gear Lift
Take Your RZR Turbo R to the Next Level
Do the most with your RZR Turbo R by installing a set of 8" GDP Portals. They give you the ground clearance you need to fit up to 42" tires, and you can select your own gear reduction 45%, 60%, or 70% . If that's not enough to impress you, choose our most extreme portal lift with dual idlers. With our GDP portals installed, you'll defiently be the talk of the trail.

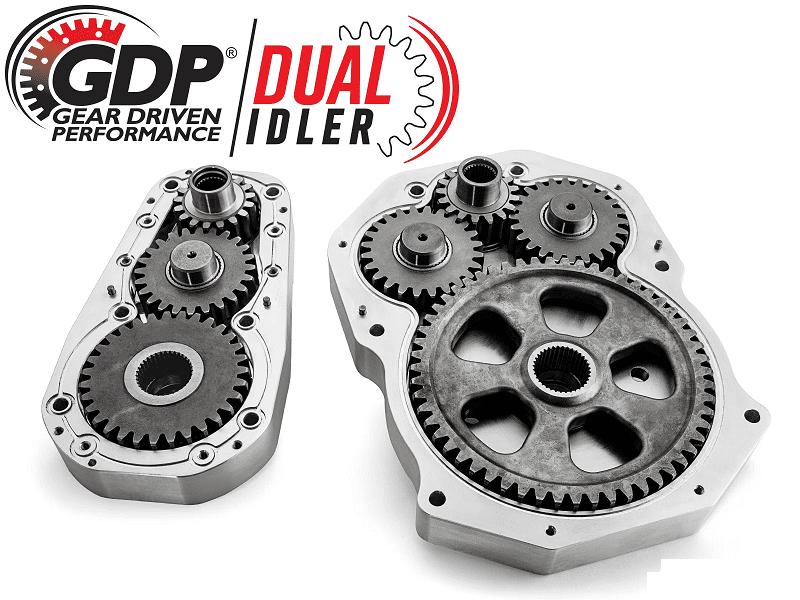

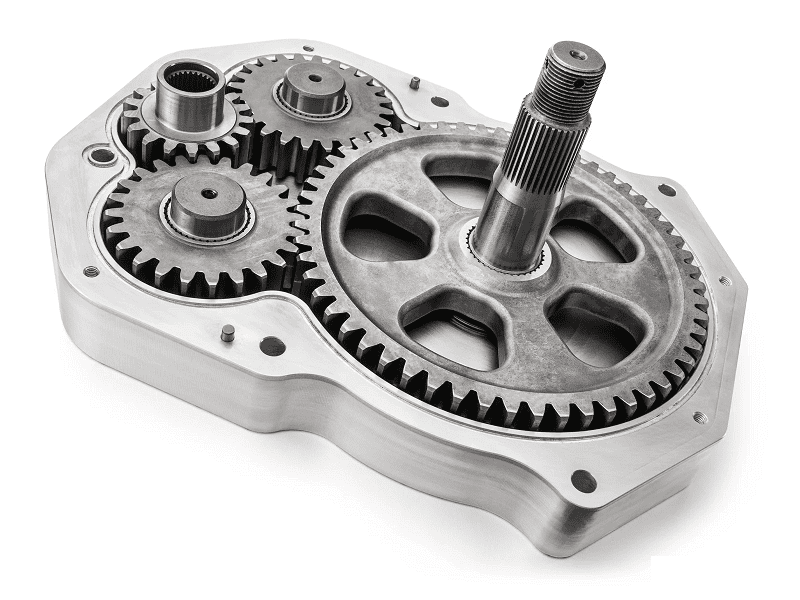

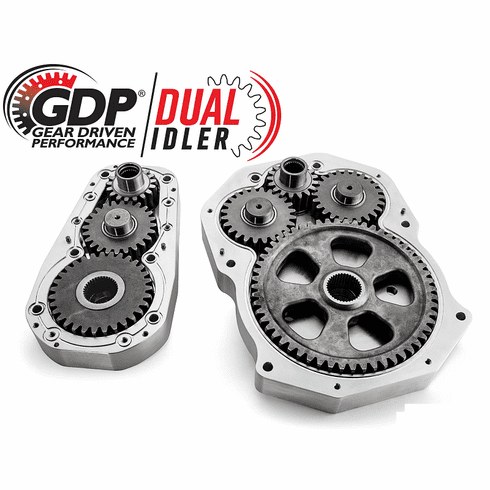

What is a Dual Idler?
Perfecting our secret sauce didn't come naturally we've spent years researching and testing our work. Today we're proud to say that our dual idler isn't like anything on the market. We placed a second idler gear in the portal box, so the load gets spread over twice as much surface area giving you more reliable torque transfer. And the strongest gear set you've ever seen. How does it work? We've engineerd the two idler gears to be mated perfectly by our precision CNC grinding techniques. Not to mention, our gears are made from the industry's toughest 9310 steel alloy.
We Know All About Mud
Everyone knows you can't truly enjoy mud pits if you're not rolling on GDP. The extra lift will keep you from getting swamped in deep bogs and also give you room for bigger tires. And don't even get us started on the torque boost! Our gear reduction either 45%, 60%, or 70% will have you cutting through the mud like it's nothing.
A Gear Reduction That Protects Your Drivetrain
With the gear reduction all the way at the hub, you get reduced stress on your axles, differential, prop shaft, and transmission. That means your components will last longer than stock even though you're riding harder.
Learn more about how tire size and gear reduction can unleash your machine's potential.

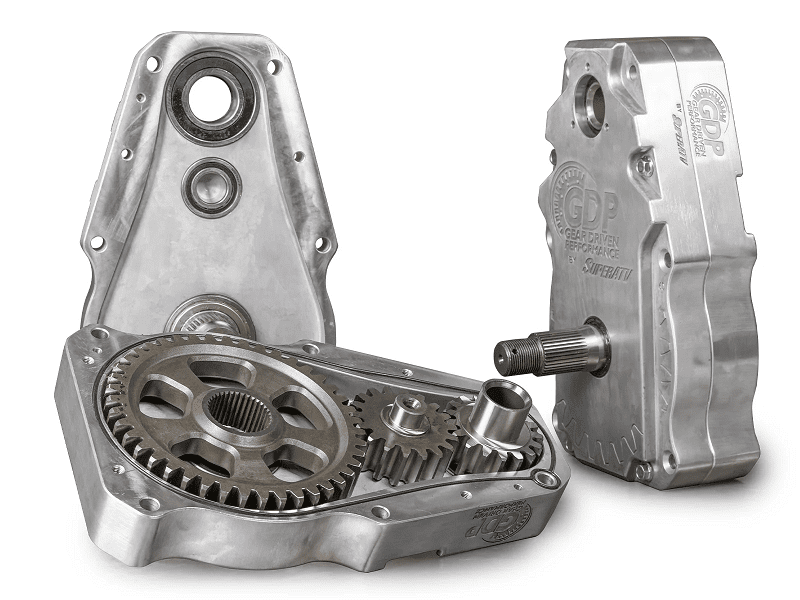

The Strongest Portal Housings and Backing Plates You Can Get
We use an advanced steel alloy for our backing plates. They're stronger than chromoly and at 5/16 inches thick, they'll stand up to anything and everything the trail throws at you. We've also spent years tweaking and honing our portal housings to make them as strong as possible. With tens of thousands of housings in the wild proving their strength every weekend, you know you're getting the best. So go with cast or super-sleek, USA-made billet aluminum either way, you're getting the best.
- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good we know because we tested them
Advanced Gaskets, Seals, and Bearings
Our portals use:
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Top-Rated Customer Service
Still need a little help getting exactly what you need? We've got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
Features
- Available with billet or cast aluminum housings
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. forward and rear offset
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use gaskets or O-rings that don't let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
Wheel Requirements:
- 22" or larger wheel required
- Wheels cannot exceed 5" backspacing
| Max Tire Size Recommendations for 8" Portal Gear Lift | ||
|---|---|---|
| Tire Size | Required Suspension Setup with 8" Portals | |
| 42" | Stock | |
| 48" | 1.5" Forward Front A-Arms | |
| If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator . | ||
| Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. | ||
Fitment
Includes
- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (2) Caliper adapter plates (dual idler configuration only)
- Extended brake lines
- All required hardware, including recessed castle nut socket
Note
WARNING: This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
âš California Proposition 65 Warning âš
WARNING: This product may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.
