Polaris Ring and Pinion Gear Set

Fits:
Polaris ACE 325 : 2014-2015
Polaris ACE 570 : 2015
Polaris General : 2016-2017
Polaris Ranger XP 570 : 2015
Polaris Ranger XP 900 : 2013-2014, and 2016
Polaris Ranger 900 Diesel : 2011-2014
Polaris Ranger 900 Diesel Crew : 2011-2014
Polaris Ranger 1000 Diesel : 2015
Polaris RZR 570 : 2012-2014
Polaris RZR 800 : 2011-2014
Polaris RZR S 800 : 2011-2014
Polaris RZR 4 800 : 2012-2014
Polaris RZR XP 900 : 2011-2014
Polaris RZR XP 4 900 : 2012-2014
Polaris RZR 900 : 2014-2017
Polaris RZR S 900 : 2015-2017
Polaris RZR 4 900 : 2015-2016
Polaris RZR S 1000 : 2016
Polaris RZR XP 1000 : 2014-2016
Polaris RZR XP 4 1000 : 2014-2016

Replaces the Following OEM Part Number:
3235441
3235845
3235489

NOTES:

For front differentials ONLY

Replaces Closed Tooth Ring Design ONLY (See Photo)

Super ATV’s Replacement Ring and Pinion Gear Set is a tough, cost-effective alternative to expensive OEM parts for your Polaris UTV.

Made from chromoly, net-forged steel, it’s designed to outperform stock with corrected gear geometry for a better mesh, longer life, and greater strength.

You can also add an optional pinion and hub seal kit to make installation easier and get back on the trail faster.

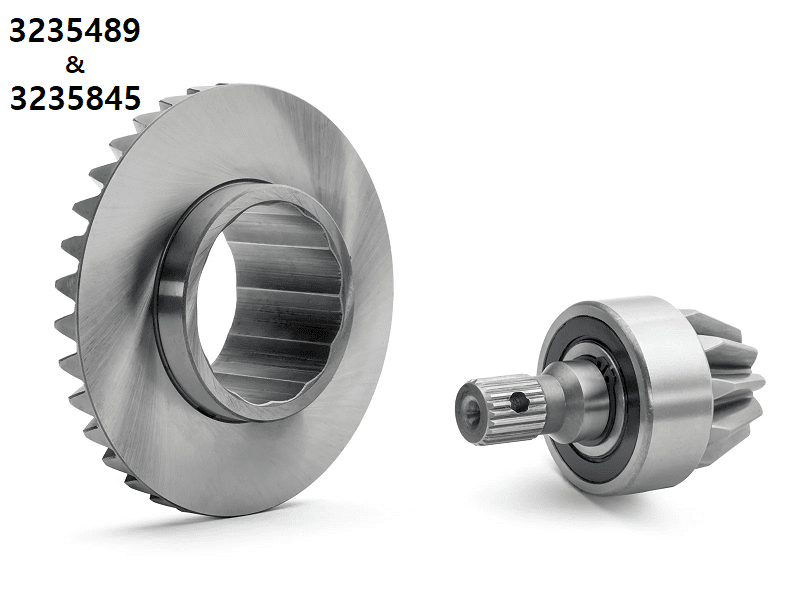

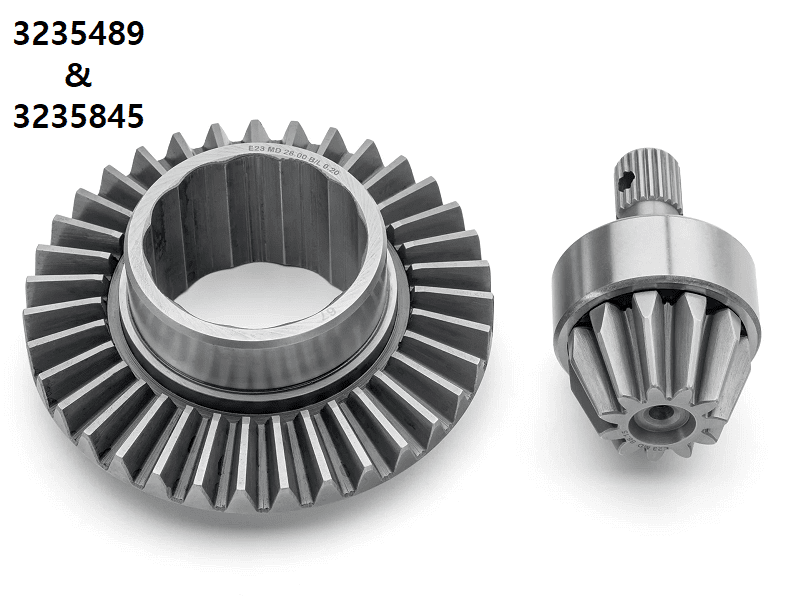

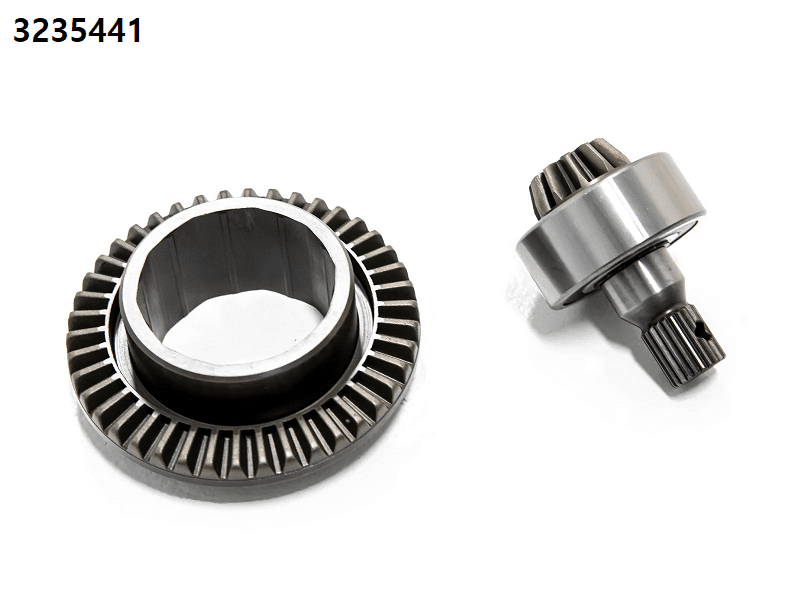

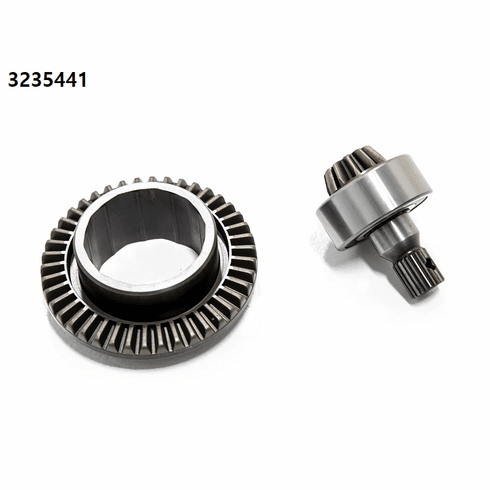

Polaris Ring and Pinion Gear Set Includes:

Ring gear

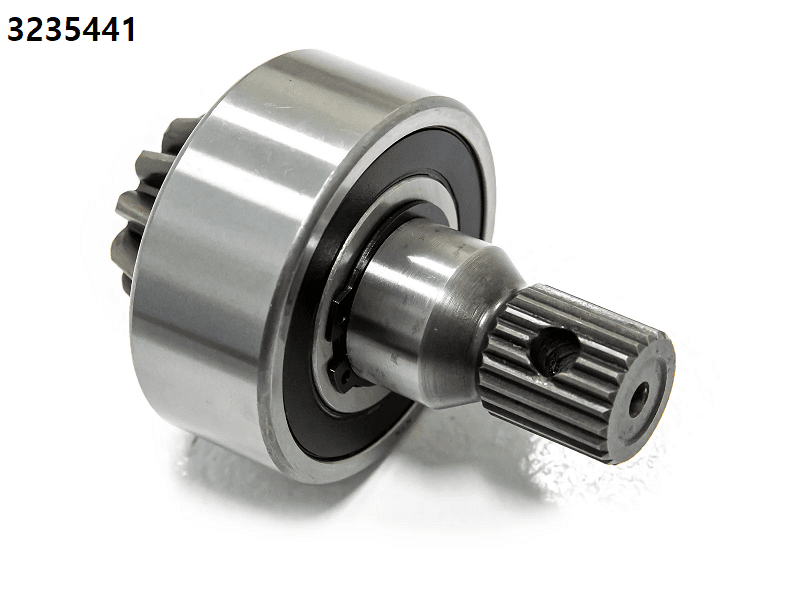

Pinion gear

Double-row angular contact bearing

Snap ring

Roll pin

(Optional) Pinion gear and hub seal

Features:

Mates better than OEM

Corrects OEM gear geometry

Made of chromoly steel

Net forged gears

Thoroughly designed and tested

This item usually ships in 2-3 business days.
