Super ATV 2013-2019 Polaris Ranger XP 900 6" Lift Kit
Fitment:
- Polaris Ranger XP 900 : 2013-2019
- Polaris Ranger XP 900 Crew : 2014-2019

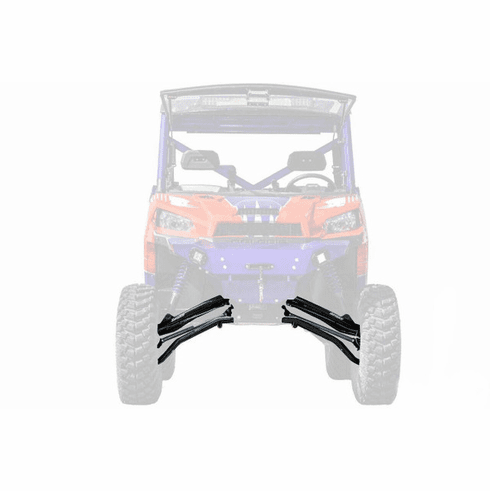

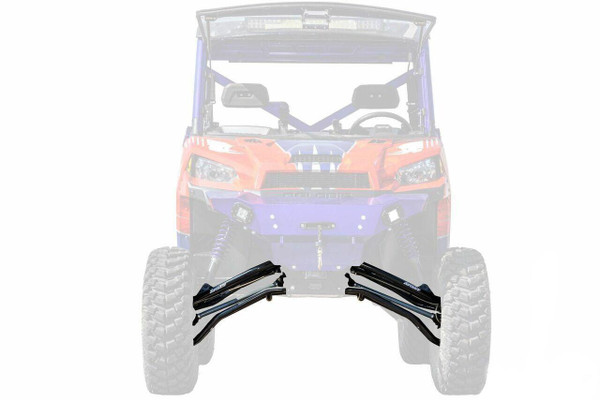

The 6” lift kit for the Polaris Ranger XP 900 takes your UTV to the next level, giving you true 6 inches of lift while keeping your suspension smooth and your turning radius intact.
With clearance for up to 34” tires, you can tackle ditches, mud pits, and rough trails that were impossible before. The kit is designed for real-world riding - smooth, maneuverable, and built tough enough to handle monster tires or even a GDP Portal Gear Lift without holding you back.
The lift uses 1-1/4” chromoly steel A-arms that are 75% thicker than stock, reinforced with cross bar supports, heavy-duty steel lift brackets, and 7/8” solid chromoly tie rods for side-to-side and top-to-bottom strength. You can pair it with X300 or Rhino 2.0 axles for maximum power and durability, and the X300 axles use 300M steel with advanced CVs to flex under load and protect your drivetrain. Carefully angled shocks and brackets keep your suspension comfortable and your turning radius tight, so you can ride in luxury, six inches higher, without sacrificing control or comfort.
This isn’t just a lift - it’s a smooth, strong, and capable upgrade built to handle everything you throw at it.
Kit Includes:

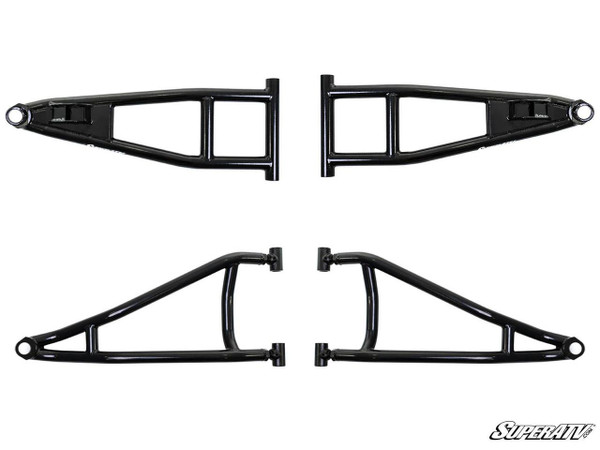

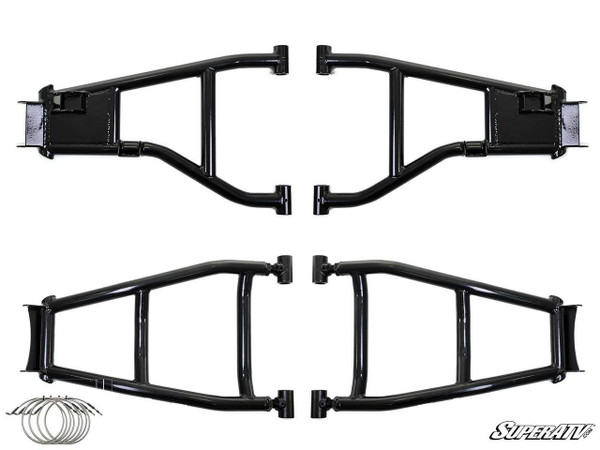

- Front and rear chromoly steel A-arms

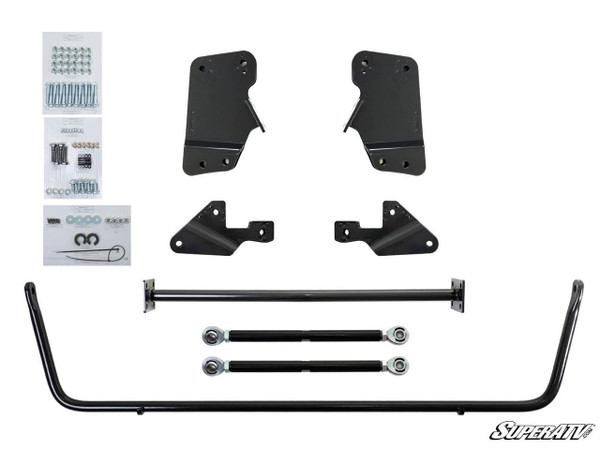

- Front and rear shock brackets
- 4 Super ATV axles (X300 or Rhino 2.0)
- Heavy-duty tie rod kit
- Extended brake lines
- Sway bar assembly and links
- All hardware and installation instructions
Features:
- True 6” of lift
- Clearance for up to 34” tires (up from 25” stock)
- 7” wider stance for increased stability
- Compatible with OEM and SuperATV heavy-duty ball joints
- Preadjusted pivot blocks give you perfect camber out of the box
- UV resistant Powder coated for increased durability
- Lifetime warranty on A-arms and lift brackets!
X300 Axle Features:
- 300M alloy steel shaft
- CV components made of 300M and 4340 alloy steel
- Maximized CV, spider, and cage size for superior strength
- Shaft flexes to absorb impact
- Reduces strain on CVs and drivetrain components
- CVs packed with proprietary high-temp grease
- Backed by a 3-Year Warranty - the industry’s best axle warranty
Rhino 2.0 Features:
- 100% stronger than stock
- Utilizes the Rhino 2.0 Formula
- Size: Massive 4mm increase in size!
- Materials
- Heat Treatment
- Constructed of 4340 chromoly steel and finished with a proprietary heat treatment
- Industry leading 18-month warranty
- Field and lab tested for extreme strength and endurance
- CAD drawn for expert precision
