Kawasaki Teryx KRX High Clearance 1.5" Forward Offset A-Arms

Fits:
Kawasaki Teryx KRX 1000 : 2020-2024
Kawasaki Teryx KRX 4 1000 : 2023-2024

NOTE: NOT compatible with Super ATV or OEM winch and winch mount installed

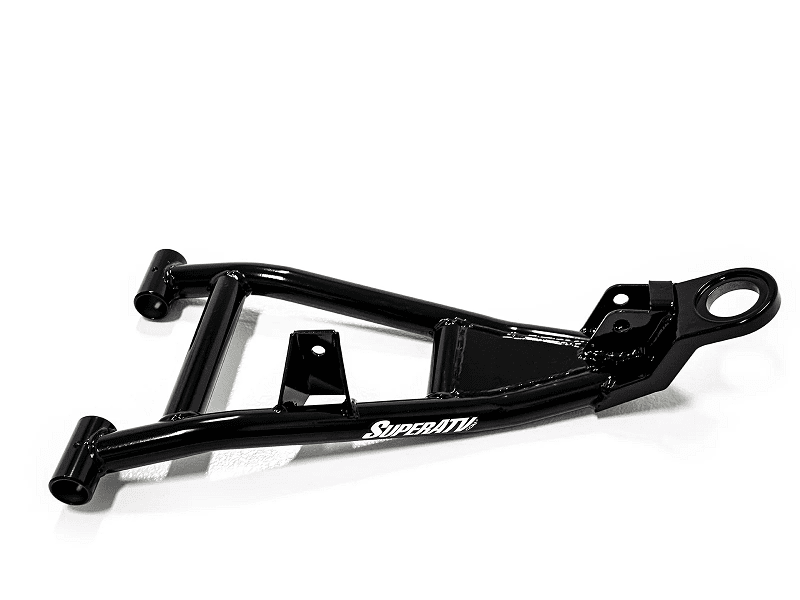

Super ATV’s High-Clearance 1.5” Forward Offset A-Arms for the Kawasaki Teryx KRX 1000 offer greater strength, stability, and tire clearance.

Built with 1.25” tubing - 25% larger than stock - they allow room for up to 34” tires and use a dual-bend design for improved ground clearance.

The 1.5” forward offset extends the wheelbase for better handling. Adjustable pivot blocks provide full camber control, and optional pre-installed ball joints save time in the garage.

NOTES:

Bushings and sleeves are NOT provided in this kit

You MUST re-use your stock ball joints if you don’t select a pre-installed ball joint at checkout.

Super Duty 300M Ball Joints

Made from ultra-strong 300M grade steel

2.25x stronger than stock

Adjustable steel-on-steel design

Easily accessible grease zerk for maintenance

Heavy Duty Ball Joints

Built from hardened 4340 VAR steel with zinc plating

Withstands double the pressure of OEM ball joints

Adjustable and greaseable design

Lab and field tested for extreme performance

Keller Ball Joints

Thread-in, two-piece design - no snap ring required

Chromoly steel stud and tool-steel body

Ideal for big machines, tires, and heavy riding

Fully greaseable and rebuildable for long-term performance

Features:

1.5” forward offset

Fit up to a 34” tire

Made with 1.25” diameter steel tubing

High-clearance bends give you extra ground clearance without a lift

Adjustable pivot blocks for full camber adjustability

Built-in steering stops

UV-resistant powder coat finish

Backed by a lifetime warranty

If you are curious about how to install this product, you can view the Install Instructions here.

This item usually ships in 2-3 business days.
