KFI - CFMoto UForce/ZForce Complete Pro-V Snow Plow System

Complete Pro-V Snow Plow System by KFI Products

Clear your big driveway or move gravel, dirt, and more faster and easier than ever by adding this easy-to-install Snow Plow Kit! KFI uses only top-grade steel construction and quality-made components for year after year of reliable plowing.

Kit includes:

• (1) Drivers Side Blade
• (1) Passengers Side Blade
• (1) Center Pivot Bulkhead
• (1) UTV Pro 2.0 Push Tube
• (1) Vehicle Specific Mount (make sure to select your correct vehicle above)

Polaris Ranger Pro-V Snow Plow System Specifications:

• 80" Wide when straight
• 75" wide in v-shape
• 72" wide in scoop
• 21" vertical blade face height with an approximate 28" height with snow flap
• 4" integrated height adjustment (=1" to +3" in 1" increments)
• Steel frame design with replaceable poly face
• Dual curvature face for supreme snow moving
• Heavy duty 3" diameter, Grade-50 steel skid plates with bolt-on brackets
• Tripping wear bar
• Metal bead blasted, then powder coated black for supreme durability
• Weighs approximately 260 lbs (100-200 lbs than the competition)
• Made in the USA
• 2-Year Limited Warranty
• Complete installation instructions included
• All mounting hardware included
• Powdercoated for maximum durability
• Unlike all other Plow competitors, our components are metal bead blasted before they are powder coated for the best possible finish prep.
• 100% Made in the USA

Pro 2.0 UTV Push Tube (106300):

• Improved Manufacturing
• Easier Install for All Plow Accessories
• Added 2.5" Of Overall Length
• Works With All KFI Plows
• Front Mount Design with 30"+ of lift height
• Heavy Duty 1-1/2" 12 Gage Square Steel Tubing
• Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
• 6" Diameter POM Injection Molded Rotator Bushing
• Easy-Pull Pin Blade angle adjustment
• Multi-position Plow Lift Bracket
• 6 five-degree blade pitch adjustments
• 3 blade angle positions that rotate the blade up to 25 Degrees

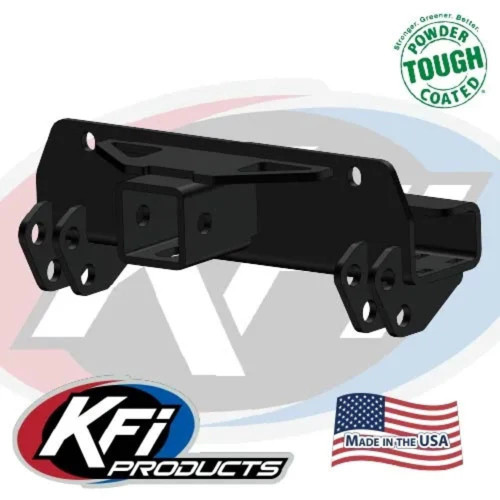

Model Specific Plow Mount:

• Front-Mount System
• Plate constructed from 3/16" Grade 50 Steel
• All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
• All Plow tabs are tapered to help reduce hang-ups while trail riding

** Actual Plow Mount may look different than reference photo shown **

Leveling Kit Information:

• Stock machines will not require a leveling kit.
• Machines with High Arch A-Arms, Large Tires, Lift Kits or Tracks will most likely require a leveling kit. The optimal pin height is 10 7/8" from the ground to the center of the plow mount pin hole. The Pro-V Snow Plow System can be adjusted between -1" and +3" in 1" increments without a leveling kit. A leveling kit can be used to bring the plow system closer to its stock height if desired.

Important Notes:

• Winch will be required for use
• Optimal pin height is 10 7/8" from the ground of the plow mount pin hole
• Machines with tracks put on them require a Pro-V Track Extension (106280) to push the blade further forward. If Hydraulic Actuators are used, 2 Actuator Harness Extensions are required (ACT-EXT x2)

Option 1: Pro-V Snow Plow System with Hydraulic Actuators and Hand Remote Kit:

• Components Included
  • 106180-CP
  • 106180-DS
  • 106180-PS
  • 106180-APH
• Drivers side and passengers side wings
• Center pivot bulkhead
• UTV Pro 2.0 Push Tube
• (2x) Hydraulic Actuators (ACT-203)
• Actuator Harness Kit with Hand Remote
• Includes Standard Mounting Ears
• Includes Premium Plow Markers
• Includes Top Flap Kit

Option 2: Pro-V Snow Plow System with Hydraulic Actuators and Dash Rocker Switch Kit:

• Components Included
  • 106180-CP
  • 106180-DS
  • 106180-PS
  • 106180-AP
• Drivers side and passengers side wings
• Center pivot bulkhead
• UTV Pro 2.0 Push Tube
• (2x) Hydraulic Actuators (ACT-203)
• (2x) Actuator Harness Kits with Dash Rocker Switch
• Includes Standard Mounting Ears
• Includes Premium Plow Markers
• Includes Top Flap Kit

Option 3: Pro-V Snow Plow System with Manual Angle Adjustment:

• Components Included
  • 106180-CP
  • 106180-DS
  • 106180-PS
  • 106180-MP
• Drivers side and passengers side wings
• Center pivot bulkhead
• UTV Pro 2.0 Push Tube
• Manual Angle Kit (106530)
• Includes Standard Mounting Ears
• Includes Premium Plow Markers
• Includes Top Flap Kit

OPTIONAL ADD-ON

Quick Plow Pulley & Soft Strap (106680/106470)

• #106680 Pulley: Features a 2-1/8" steel wheel to prevent cable damage and improve lift geometry, reducing electrical strain on your UTV.
• #106470 12" Soft Strap: USA-made heavy-duty webbing with a 3,200 lb break strength.
