Fits:
Yamaha YXZ 1000
Kit Features:
- +4 inches wider per side; Additional 8 inches of track width
- +4 inches of wheel base added ; 2 front , 2 rear
- minimal weight increase of only 13 pounds on Elite kit while increasing strength exponentially.
- Fiber Laser Cut construction for precise fit and finish
- CNC'd 4130 heat treated billet mounting points for increased integrity
- Angled catacomb design for optimal force distribution
- RCV +4 extended axle bars. Heat Treated & through hardened
- Unique trailing arm inspired design for minimal added weight and increased strength.

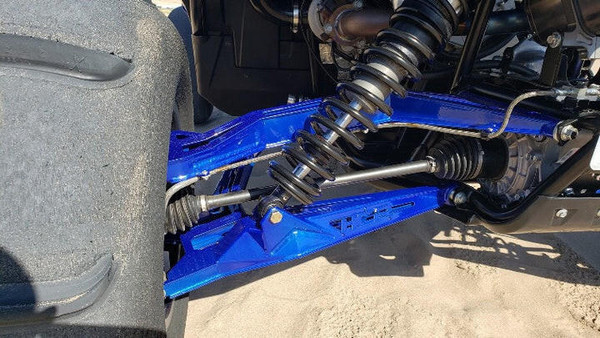

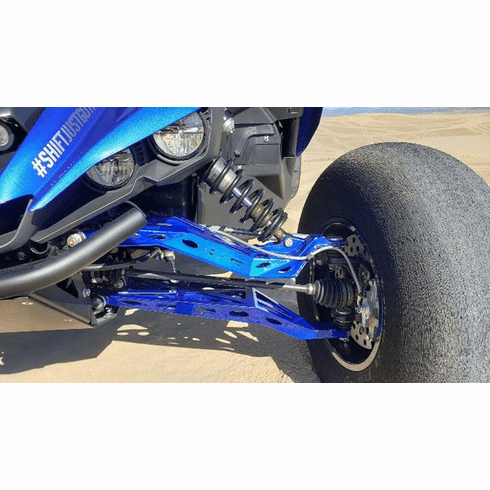

- High Clearance Boxed A-Arm Design
- Each piece is carefully tig welded for strength and aesthetics
- OEM ball joints are reused to maximize low speed steering, ease & smooth travel with less maintenance
- compatible with stock wheels
- High-Clearance Arms provide an increase of 1.25” in ground clearance
- 100% Bolt-on installation using factory mounting points
- Larger front tube mounts are 1.25” in diameter with Delrin bushings for increased strength and durability
Kit Includes:
(4) Front A-arms
(4) Rear Control arms
(4) RCV Extended Axle Bars
(1) Stock Series Shock Tower
(1) set of tie rod extensions
Hardware pack
YXZ Installation guide
