Fits:
Polaris RZR XP 1000 : 2014-2023
Polaris RZR XP 4 1000 : 2014-2023
HCR Suspension’s Mid-Travel Suspension kits for the RZR XP 1000 Series add 3 inches of travel per side and a 3-inch longer wheelbase while using factory shocks.
The upgrade enhances ride quality, stability, and control across varied terrains and racing conditions. A 4+3 offset is recommended.
Features:
- HCR alloy used to build every kit is 30% stronger than 4130 Chromoly
- Every external weld is an internal plate structured into the design
- HCR kits run a 4130-heat treated billet end allowing all internal and external plating to be attached to this billet eliminating a potential weak point
- Billets are available in both ball joint and spherical applications
- HCR Shock tower to reduce compound leverage and achieve a better motion ratio
- Addition wheelbase of +3 inches
- Additional width of +3 inches per side
- Ground Clearance increased by 1.25 inches in the arm design
- Nitro Tip to Tip axles (Turbo models ONLY)

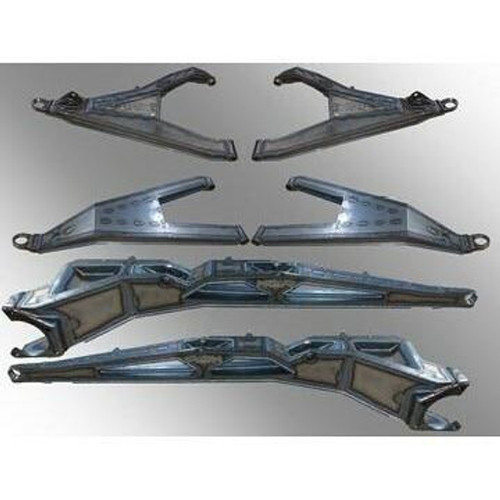

Kit Includes:
- (4) Front A-arms
- (2) Rear Trailing arms
- Tie-rod Extensions
- Shock Tower
- (4) Complete Axles
- High Clearance Radius Rods - Anodized Black
- Hardware Pack
- Install guide
NOTES:
**2017 models MUST confirm hardware size on radius rods
**Does NOT come with trailing arm radial bearings (Replace with Polaris OEM hardware)
