72" Plow System for CF Moto UForce 1000
Item# DEN-3SBSS-77-10597
Description
NOTES:
- CANNOT SHIP TO ALASKA OR HAWAII.
- Must have a winch to use plow system.
Applicability: 2019-20 CFMOTO UForce 1000
Your CF Moto UForce 1000 is a powerful machine built to withstand hard work and provide you with an enjoyable riding experience as well! With the winter weather approaching it may be time to consider aftermarket accessories that will benefit you throughout the cold months. Side By Side Stuff offers many UTV parts perfect for the elements, and if you live in a snowy state, we have an excellent option for you. Take a gander at the durable Denali 72 Inch Pro Series Snow Plow and the benefits it will provide!
Denali manufactures their products in the U.S.A. with a unique, curved, country-style blade design from twelve-gauge steel. Incorporated edge stiffeners, a stabilizer bar and a high strength, high yield steel wear bar give the plow durable, reliable performance with every use. Due to the impact-resistant reinforcement system, the force is dispersed to the sturdiest part of your SxS to prevent damage from any sudden impact. With this UForce 1000 snow plow, you can get your driveway cleared in no time all while enjoying the process!
Blade Specifications:
Push Tube Specifications:
Plow Mount Specifications:
Optional Hydroturn Specifications:
Optional Push Tube Length:
Choose the push tube length that you need to fit your needs. If you have tracks, then choose the extended push tube to get the snow plow further out, giving you more room for the tracks to work without interference.
Optional Plow Pulley Fairlead Kit:
The Plow Pulley Fairlead Kit is designed specifically to resist wear from the steep angle that occurs between the fairlead and the plow, extending the life of your winch cable. It can be used with either a steel or synthetic cable and is constructed of black powder coated 7 gauge steel. There are two roller heights for different fairlead heights and angles and you'll receive hardware and instructions.
Optional Pushtube Lift Kits:
When your UTV has those monster tires or that beastly lift kit on it, using a snow plow in the winter can be a pain. Finding a solution that solves the problem of your pushtube matching the height of your machine can mean complete removal of your tires or lift. With the Denali Pushtube Lift Kit installed, you can keep your tires and lift kit on, while giving Jack Frost the boot! This Pushtube Lift Kit bolts directly to your existing Denali UTV Pushtube giving an easy install, the 2 inch lift will give you 13-15 inches off the ground, and the 4 inch will give you 15-17, all while meeting your snow plow needs!
- CANNOT SHIP TO ALASKA OR HAWAII.
- Must have a winch to use plow system.
Applicability: 2019-20 CFMOTO UForce 1000
Your CF Moto UForce 1000 is a powerful machine built to withstand hard work and provide you with an enjoyable riding experience as well! With the winter weather approaching it may be time to consider aftermarket accessories that will benefit you throughout the cold months. Side By Side Stuff offers many UTV parts perfect for the elements, and if you live in a snowy state, we have an excellent option for you. Take a gander at the durable Denali 72 Inch Pro Series Snow Plow and the benefits it will provide!
Denali manufactures their products in the U.S.A. with a unique, curved, country-style blade design from twelve-gauge steel. Incorporated edge stiffeners, a stabilizer bar and a high strength, high yield steel wear bar give the plow durable, reliable performance with every use. Due to the impact-resistant reinforcement system, the force is dispersed to the sturdiest part of your SxS to prevent damage from any sudden impact. With this UForce 1000 snow plow, you can get your driveway cleared in no time all while enjoying the process!
Blade Specifications:
- U.S.A. made
- County-style blade with curved design made of 12 gauge steel
- Impact resistant reinforcement system disperses force of impact to the sturdiest part of the UTV, preventing damage from sudden impact
- Includes edge stiffeners and stabilizer bar
- Sand blasted, powder coated with epoxy primer and TGIC polyester top coat for corrosion protection, UV resistance and durability

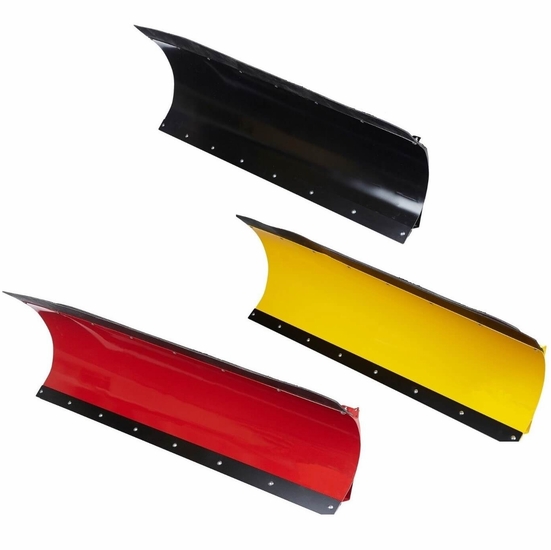

- Available in black, red or yellow
- High strength, high yield 3/16 inch thick grade 50 steel wear bar
- Angle blade is 23 inches on the tallest side and 16 inches on the shortest side
- Rubber flap stabilizer bar with upgraded (stiffer) rubber flap
- Plow markers included
- Height and angle adjustable premium steel skid feet
- Includes 3 year warranty on the plow blade against manufacturer defects
Push Tube Specifications:
- Impact resistant reinforced pivot assembly
- Turn system allows for easy blade positioning in different angles to the left or right - 0 degrees, 12.5 degrees and 25 degrees
- Simple detachment systems with the pull of a pin
- Structural tube steel cross bar for added lateral rigidity
Plow Mount Specifications:
- Front mount
- 100% laser cut 1/4 inch steel
- Slotted holes allow blade to hug the ground

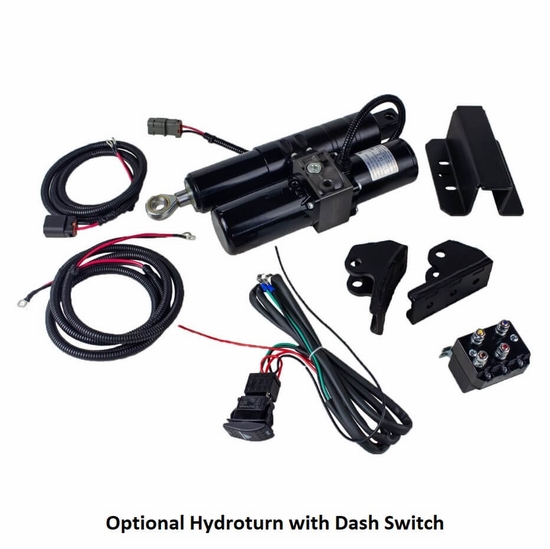

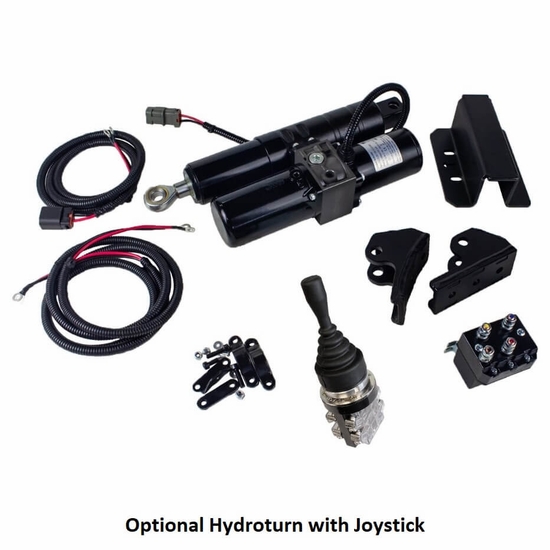

Optional Hydroturn Specifications:
- Parker hydraulics system with built in relief valve overload protection
- Hydraulic system is completely sealed for life
- Full radius turn in just 5 seconds while driving
- Heavy duty chrome plated 3/4 inch cylinder shafts
- Two bolt installation of hydraulic cylinder and pump
- No modifications necessary
- Wire harness utilizes weatherproof connectors
- Backwards compatible with manual turning system
- Overload protection of 4,000 lbs. of extension force and 3,500 lbs. of retraction force
- Includes 3 year warranty
Optional Push Tube Length:
Choose the push tube length that you need to fit your needs. If you have tracks, then choose the extended push tube to get the snow plow further out, giving you more room for the tracks to work without interference.
Optional Plow Pulley Fairlead Kit:
The Plow Pulley Fairlead Kit is designed specifically to resist wear from the steep angle that occurs between the fairlead and the plow, extending the life of your winch cable. It can be used with either a steel or synthetic cable and is constructed of black powder coated 7 gauge steel. There are two roller heights for different fairlead heights and angles and you'll receive hardware and instructions.
- Standard spool pattern: 3" x 4-7/8"
- Wide spool pattern: 3" x 6.67"
Optional Pushtube Lift Kits:
When your UTV has those monster tires or that beastly lift kit on it, using a snow plow in the winter can be a pain. Finding a solution that solves the problem of your pushtube matching the height of your machine can mean complete removal of your tires or lift. With the Denali Pushtube Lift Kit installed, you can keep your tires and lift kit on, while giving Jack Frost the boot! This Pushtube Lift Kit bolts directly to your existing Denali UTV Pushtube giving an easy install, the 2 inch lift will give you 13-15 inches off the ground, and the 4 inch will give you 15-17, all while meeting your snow plow needs!
