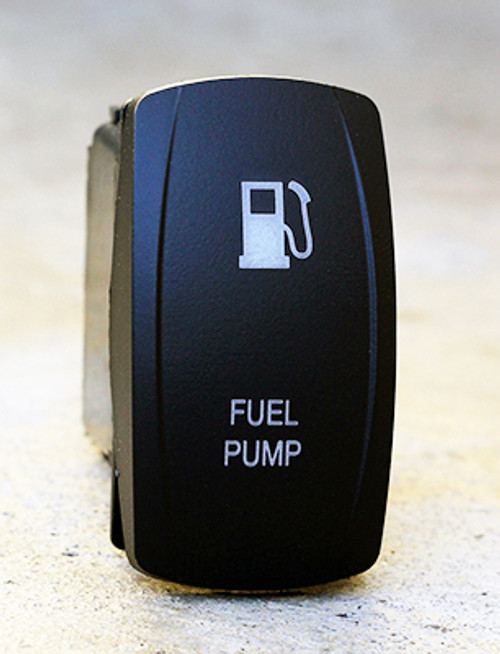

Fuel Pump-Dual Led Lighted Rocker-Switch

Five Terminal Electrical Switch with Dual Independent LED Indicators – High-Visibility, Versatile Wiring Solution

Designed for performance and clarity in demanding electrical applications, this five terminal electrical switch features dual LED functionality with fully independent wiring, offering both functional control and visual status indication. Ideal for use in automotive, marine, industrial control panels, and custom electrical systems, this LED switch provides reliable operation and streamlined integration into your circuit design.

Engineered for flexibility, the upper LED is independently wired, allowing users to activate it via a separate power source or circuit for custom illumination or indicator purposes. The lower LED automatically illuminates when the switch is turned ON, offering immediate visual feedback of switch status. This dual LED configuration is supported by dedicated ground terminals for each LED, ensuring proper operation and signal isolation in complex systems.

The five terminal switch design eliminates rear barriers between terminals, allowing for efficient and accessible wiring in tight installations. For secure and safe connections, the switch supports insulated 1/4" female disconnects, or can be used with the VCH rear connector housing for enhanced assembly integration and cable management.

Whether you're designing a professional-grade control panel or upgrading a lighting system, this independently wired LED switch delivers high visibility, versatile connection options, and consistent performance in any electrical application.

Key Features:

• Five terminal switch for flexible wiring and control

• Dual LED indicators for real-time status display

• Independently wired upper LED for customizable lighting circuits

• Lower LED illuminates automatically when switch is ON

• Separate ground terminals for each LED to ensure electrical isolation

• No rear barriers between terminals for simplified installation

• Compatible with insulated 1/4" female disconnects or the VCH rear connector housing

Optimize your control systems with a durable, professional-grade electrical switch with dual LED functionality—engineered for visibility, adaptability, and ease of installation.
