Name: Xtc Plug & Play Power Control System W/ Strobe Lights Switch (6 Switches)
Brand: XTC
SKU: XTC-PCS-72S-MAV
Price: 426.55 USD
Availability: OutOfStock

Xtc Plug & Play Power Control System W/ Strobe Lights Switch (6 Switches)

(No reviews yet) Write a Review

$426.55

MSRP: $511.99

You save - $85.44 (16.69%)

item#:

XTC-PCS-72S-MAV

Description

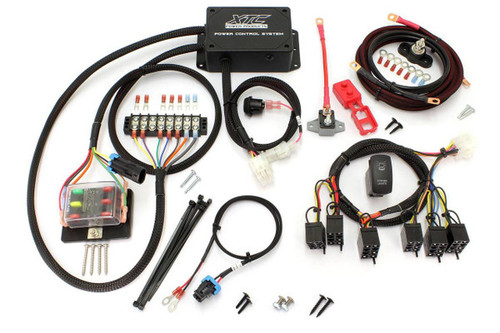

XTC Plug & Play Power Control System w/ Strobe Lights Switch (6 Switches)

6 Switch Power Control System with Strobe Lights Switch

XTC Power Products Leads the way in UTV Wiring. Powering multiple accessories has become easier than ever with our Plug and Play PCS (Power Control System). Unlike other switch systems available, the Power Control System's designed with the installer in mind. Every PCS has a vehicle specific power connector and rocker switch harness that fits the factory pre-cut rocker switch positions.

Power Delivered

The PCS-72S includes 1 x 30 amp and 1 x 20 amp high current circuits on relays with Diode protection. The design reduces voltage spikes from field collapse, protecting LED lights and other sensitive accessories. There are also 3 x 10 amp direct wire circuits provided for low power accessories like rock lights or whip lights. One Switch's a dedicated Strobe Light System with 2-Channels on a 10 amp fuse. Additionally included is a fuse block that protects the circuits and comes with an eight gauge power cable and fuses. Most UTV charging systems produce anywhere from 40-70 amps. Because of this, a 50 amp circuit breaker at the battery safely supplies power to the PCS. Installing a 100+ amp high power switch system is not practical in a UTV.

The Power Control Systems Barrier Strip

Pro wiring installers have been using barrier strips in off-road vehicle builds for years. Some good reasons would be aesthetics, along with ease of use when adding new connections and troubleshooting down the road. Each screw point on the barrier strip has a different colored wire that corresponds with the fuse box and switches harness wires. Therefore the 1st rocker switch would be the large 30 amp grey wire, and then so on and so forth. Lastly, the purple and yellow wires are the Strobe System circuits and Strobe in a left/right sequence when activated. This feature can be integrated into the vehicle brake light system and other aftermarket accessories.

Polaris RZR Strobe System Switch Power Harness Configurations

the PCS-72S has become our most universal Power Control System with Strobe System for switch mounting locations. The switch harness has three rocker switches that mount in the center dash, followed by a single switch mounted right of the steering wheel, and then two more go left of the steering wheel. Also, rocker switches can be installed together in any custom way deemed fit by the installer as well. The Strobe System has 7 different flashing patterns that can be cycled through using the included black mountable switch. Moreover, a Molex connector links the switch harness to the main Power Control System.
