Wilwood Can-Am Maverick R NDPR Rear UTV Brake Kit - Race

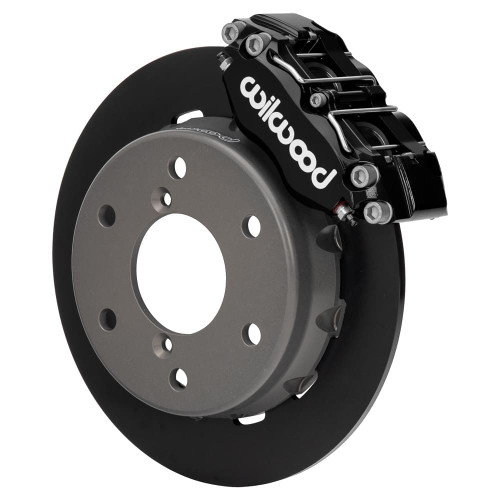

NDPR Rear UTV Brake Kit (Race): Wilwood’s matched NDPR front and rear UTV Race brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs. Forged aluminum four piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. High-friction BP-28 brake pads and steel rotors that are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain.
Installation Instructions:
Notes:
- Brake Kits are designed to fit OE Factory Spindles.
- Brake Kit may fit other vehicles.
- This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Fitment:
| Vehicle Make | Vehicle Models |
| Can-Am | Can-Am Maverick R 2024 Base |
| Can-Am | Can-Am Maverick R X 2024 Base |
| Can-Am | Can-Am Maverick R X RS 2024 Base |
| Can-Am | Can-Am Maverick R X RS Smart-Shox 2024 Base |
Specifications:
| Kit Summary | |
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Radial |
| Caliper Type: | 4 - Type III Anodize |
| Rotor Diameter: | 11.60 |
| Min Wheel Diameter Req'd*: | 14 |
Kit Components & Specifications:
| Calipers | |
| Type: | NDPR |
| Finish Color: | Type III Anodize |
| Piston Count: | 4 |
| Piston 1 Bore (in): | 1.62 |
| Piston 2 Bore (in): | 1.62 |
| Piston Area (In²): | 4.12 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 7812 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-28 |
 |
|
| Rotors | |
| Type: | Drilled Steel Rotor |
| Style: | Plain Face |
| Surface Finish: | Black Electro Coat |
| Material: | Steel |
| Outside Diameter (in): | 11.60 |
| Width (in): | 0.25 |
| Vance Count: | Solid |
| Design Type: | Solid |
| Bedded: | No |
| Dynamically Balanced: | No |
 |
|
| Rotor Hats | |
| Type: | Big Brake Dynamic Lug Drive - Flared Bell |
| Material: | Aluminum |
| Finish Color: | Type III Anodize |
| Hat Offset Dimension (in): | 1.210 |
| Bolt Circle 1: | 6 x 5.50 |
| Bolt Circle 2: | |
| Bolt Circle 3: | |
| Stud Diameter - BC 1: | 0.590 |
| Stud Diameter - BC 2: | 0.000 |
| Stud Diameter - BC 3: | 0.000 |
|
|
| Hubs | |
| Type: | |
| Material: | |
| Finish Color: | |
| Bolt Circle 1: | |
| Bolt Circle 2: | |
| Bolt Circle 3: | |
| Stud Diameter - BC 1: | |
| Stud Diameter - BC 2: | |
| Stud Diameter - BC 3: | |
