Suspension Direct - SDI Polaris Turbo R/ Pro R (Fox) E-CLIK Active Pro Shock System
The Suspension Direct " SDI Polaris Turbo R / Pro R (Fox) E-CLIK Active Pro Shock System delivers next-level precision, comfort, and control for both 2-seat and 4-seat models, transforming the way your machine handles any terrain. This advanced electronic suspension package continuously analyzes driving conditions and automatically adjusts damping in real time for unmatched ride quality. Engineered specifically for high-performance Polaris platforms, it gives your UTV the ability to adapt instantly"whether you're blasting through whoops, carving dunes, or navigating tight technical trails. With its intelligent design, robust components, and seamless integration, this system elevates your Side by Side to a new standard of stability, confidence, and capability.
What is E-CLIK Semi-Active Suspension?
- Uses an ECU that processes vehicle and sensor data up to 250 times per second to instantly adjust each shock based on terrain and riding conditions.
- Choose your mode: Trail, Desert, or Dune, and E-CLIK makes the adjustments automatically.
Features
- 8-Axis Inertia Measurement Unit (IMU): High accuracy, advanced stand-alone unit separate from the ECU circuit board.
- IP69K Rated: Rugged ECU, IMU, and sealed connectors to withstand harsh conditions.
- 3 Terrain Modes selectable via Touch Screen Controller or Polaris Ultimate steering wheel:
- Trail: Excels in slower trail riding and rock crawling; provides a soft, comfortable ride without sacrificing body control.
- Dune: Ideal for extreme transitions; ECU senses G-outs and stiffens front then rear to minimize bottom outs and body roll, offering superior dune handling.
- Desert: High-speed mode; reacts quickly to terrain and driver input for precise handling and control.
Enhanced Suspension Performance
- Improves existing SXS suspension without needing multiple upgrades.
- Works with Turbo or Pro R models when paired with spring kit & clevis upgrade.
Customizable to Driver & Terrain
-
Adjustable settings via stock steering wheel or touch screen:
- Compression and rebound for shocks
- Front & rear independent stiffness
- Load compensation for extra cargo
Pro Menu Adjustments
-
Fine-tune how the system reacts to driving conditions:
-
Pitch sensitivity
-
Roll sensitivity
-
Turn sensitivity
-
Throttle sensitivity
-
Brake sensitivity
-
H.S. (High-Speed) Button
-
Wheel-mounted button (or stock steering wheel button) instantly stiffens suspension for better control in challenging situations.
Suspension Direct - Sdi Polaris Xp1000 / Xp Turbo E-clik Active Pro Shock System
Suspension Direct - Sdi Polaris Xpedition E-clik Active Pro Shock System
Suspension Direct - Sdi Polaris Rs1 E-clik Active Pro Shock System
Suspension Direct - Sdi Polaris Ranger 1500 Xd E-clik Active Pro Shock System

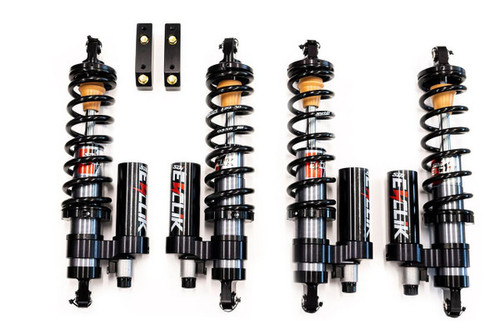

Suspension Direct - Sdi Can-am Defender E-clik Active Pro Shock System
