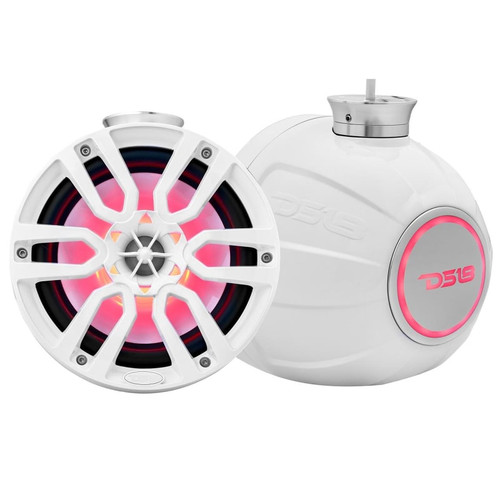

DS18 NXL 8" Pod 375W Speaker with Integrated RGB LED Lights - Pair
DS18’s NXL-PS8, from the renowned DS18 Hydro All Elements Series, elevates your audio experience to new heights with a Loud designed for any audio setup.
Immerse yourself in crystal-clear sound that defies the elements. These speakers feature a slim pod design that retains the loudness of its larger counterparts with exceptional performance that lasts. These rugged, water-resistant speakers feature a compelling 2-way configuration, ensuring a wide frequency response of 65Hz - 23KHz.
With power handling capabilities of 125W RMS and 375W MAX, the NXL-PS8 guarantees dynamic sound that fills any venue. Its voice coil diameter of 1.2" and high sensitivity rating of 93dB ensure every beat is reproduced accurately.
Installation is a breeze, thanks to the durable strap clamps that effortlessly mount on bars measuring 1.75" or 2" in diameter. Plus, the integrated RGB LED lighting adds a touch of brilliance to your setup, illuminating both the speaker and the distinctive DS18 logo.
Get Loud everywhere with DS18's NXL-PS8!
Features:
- 8" Marine Speaker Pods
- 1 X 8" NXL-8
- RMS Power: 125 Watts
- Impedance: 4 Ohm
- RGB LED Light
- Water Resistant IP65
- UV Protected
- Flat & Tube Mount Included
Instructions:
Specifications:
Specs:
-
Nominal Diameter: 8" / 203mm
-
Nominal Impedance: 4 ohm
-
RMS Power Handling: 125W
-
MAX Power Handling: 375W
-
Sensitivity (1w/1m): 93dB
-
Frequency Response: 55Hz - 23Khz
- Recommended HI Pass Crossover: 70Hz
Body / Features:
-
Enclosure Material: Injection PC+ABS
-
Marine Grade Type: IP65 + UV Stable
-
RGB LED: Integrated LED-RGB Speaker Cone + Back Logo Lighting 6 Core Wires for Lighting and Speaker
-
Grill Type: Injection Molded ASA + UV Coating
-
Pair: Yes
-
Clamps: CNC Aluminum base for flat mounting and Die-Cast Solid Aluminum 360° rotation mobile clamps for 1.75" or 2" mast Included
-
Front Logo: Yes, can be rotated for correct angle display
-
Rear Logo: Yes, can be rotated for correct angle display
- Finish: Matt Black
Woofer Specifications:
-
Voice Coil Diameter: 1.2"
-
Cone Material: Injection Molded UV-Compliant Polypropylene
-
Surround Material: Butyl
-
Basket Material: High Temp Injection Molded Composite + UV Coating
-
Magnet Material: Ferrite + Neodymium
-
Magnet Grade: Y35 / N40H
- Passive Radiator: NO
Tweeter Specifications:
-
Voice Coil Diameter: 1"
-
Type: Dome
-
Diaphragm Material: Titanium + PEI Surround
-
Magnet Material: Neodymium
- Crossover: 6dB/Oct
Thiele & Small Parameters:
-
Equivalent Volume Vas: 22.5L / 0.795ft3
-
Excursion (one way) XMAX: 4 mm
-
Free Air Resonance FS: 50Hz
- Total Factor QTS: 0.532
Speaker Measurement:
-
Overall Diameter: 8.59" / 218.1mm
-
Overall Depth: 6.8" / 173mm
-
Overall Height (with Mast Clamp): 11.54" / 293.1mm
- Overall Height (with Flat Clamp): 9.4" / 238.7mm
