Kawasaki Mule | Teryx KFI Open Trail UTV Plow SystemZoom

Kawasaki Mule | Teryx KFI Open Trail UTV Plow System

Item# kfi-snwplwkaw
$689.00
Blade Size:
Vehicle:
Add Plow Markers:

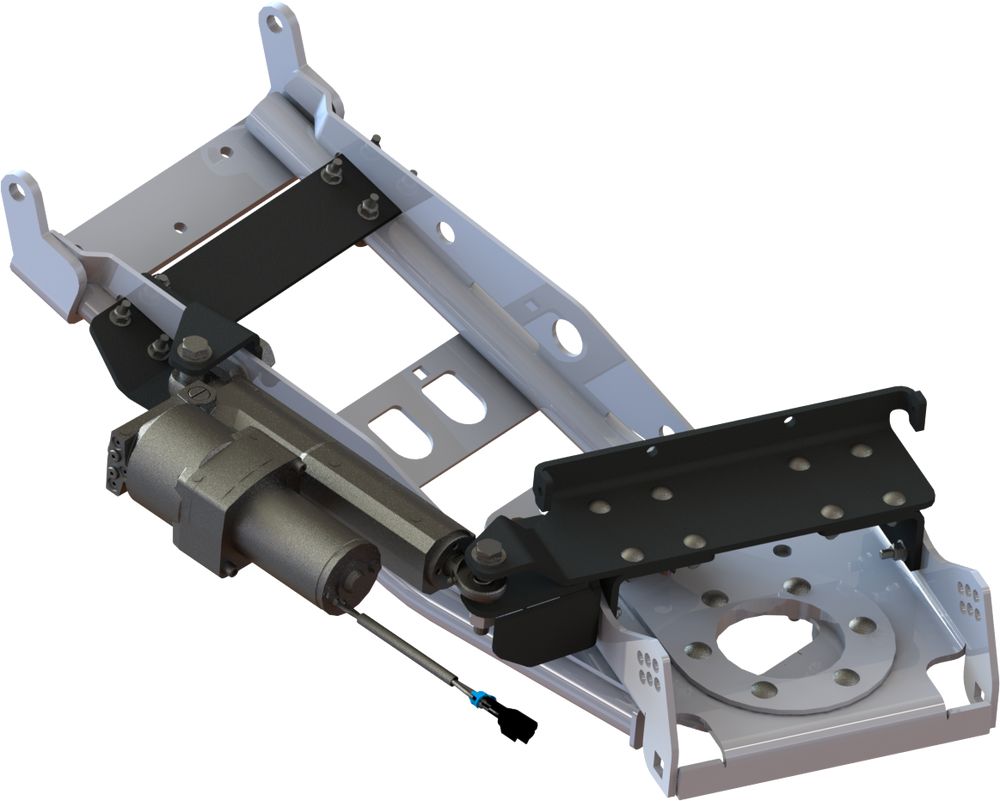

Add Electric Hydraulic Angle Kit:
Add KFI Winch:
Qty:

Description



The KFI Snow Plow System for Kawasaki UTV models makes an excellent addition to any Mule or Teryx looking to move a lot of snow in a short amount of time. All KFI Plow Kit components are made in the USA and will transform your Kawasaki into your best friend when the snow starts to fall. There are mounting kits for all Kawasaki Teryx and Kawasaki Mule models, including the Mule Pro Series and Teryx 800.

Plow Kit come complete with:

(1) Plow Blade (your choice of size)
(1) UTV Push Tube
(1) Vehicle Specific Mount (make sure to select your correct vehicle above)

- Does not included winch or winch mount
- 60" blades do not include 2-ply top rubber flap, must be purchased separately

****2020+ KRX1000 plow system will not work with front bumper installed****



All Plow Components Feature:
  • Complete installation instructions included
  • All mounting hardware included
  • KFI satisfaction guaranteed
  • 2-Year KFI Warranty
  • Powdercoated for maximum durability
  • Components are metal bead blasted before they are powder coated for the best possible finish prep.
  • 100% Made in the USA
UTV Straight Plow Blades
  • Pushes snow straight ahead or to the sides up to 25 degrees
  • Added gusseting for the wider width and heavier UTV
  • Includes a 7" high 2-ply top rubber flap
  • Measures 16" Tall and 60", 66" or 72" Wide
  • Fully-adjustable blade skids with bolt-on brackets
  • Heavy duty 3"-diameter grade-50 steel skid plates
  • Blade Constructed of 11 ga steel
  • 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
  • 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
  • Wear Bar attached with Heavy Duty Grade 8 Bolts
UTV Pro Poly Plow Blades
  • 3/16” Grade 50 Steel Rib and Frame construction
  • Shot Blasted and Powder Coated Black Steel Frame
  • Flexible Heavy Duty Black Poly face
  • Same weight as steel blades
  • 2-Sided 3/16” Grade 50 Steel attached with Grade 8 bolts
  • Includes Plow Markers
  • Replaceable Blade Face
  • 66” and 72” Options
  • Includes snow flap
  • Dual Curvature face for supreme snow moving
  • 21” Vertical blade face height with an approximate 27” height with snow flap
  • Works with current KFI No.105635 UTV Tube System
  • Heavy Duty 1/2” thick Adjustable Skids
UTV Push Tubes
  • Front Mount Design with 30" of lift height
  • Heavy Duty 1-1/2" 11 Gage Steel Tubing
  • Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
  • 6" Diameter Zinc Plated Rotator Bushing
  • Easy-Pull Pin Blade angle adjustment
  • Multi-position Plow Lift Bracket
  • 6 five degree blade pitch adjustments
  • 3 blade angle positions that rotate the blade up to 25 Degrees
  • Fully-adjustable blade skids with bolt-on brackets
UTV Plow Mount
  • Front-Mount System
  • Plate constructed from 3/16" Grade 50 Steel
  • All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
  • All Plow tabs are tapered to help reduce hang-ups while trail riding
Usually ships in 2-3 business days
